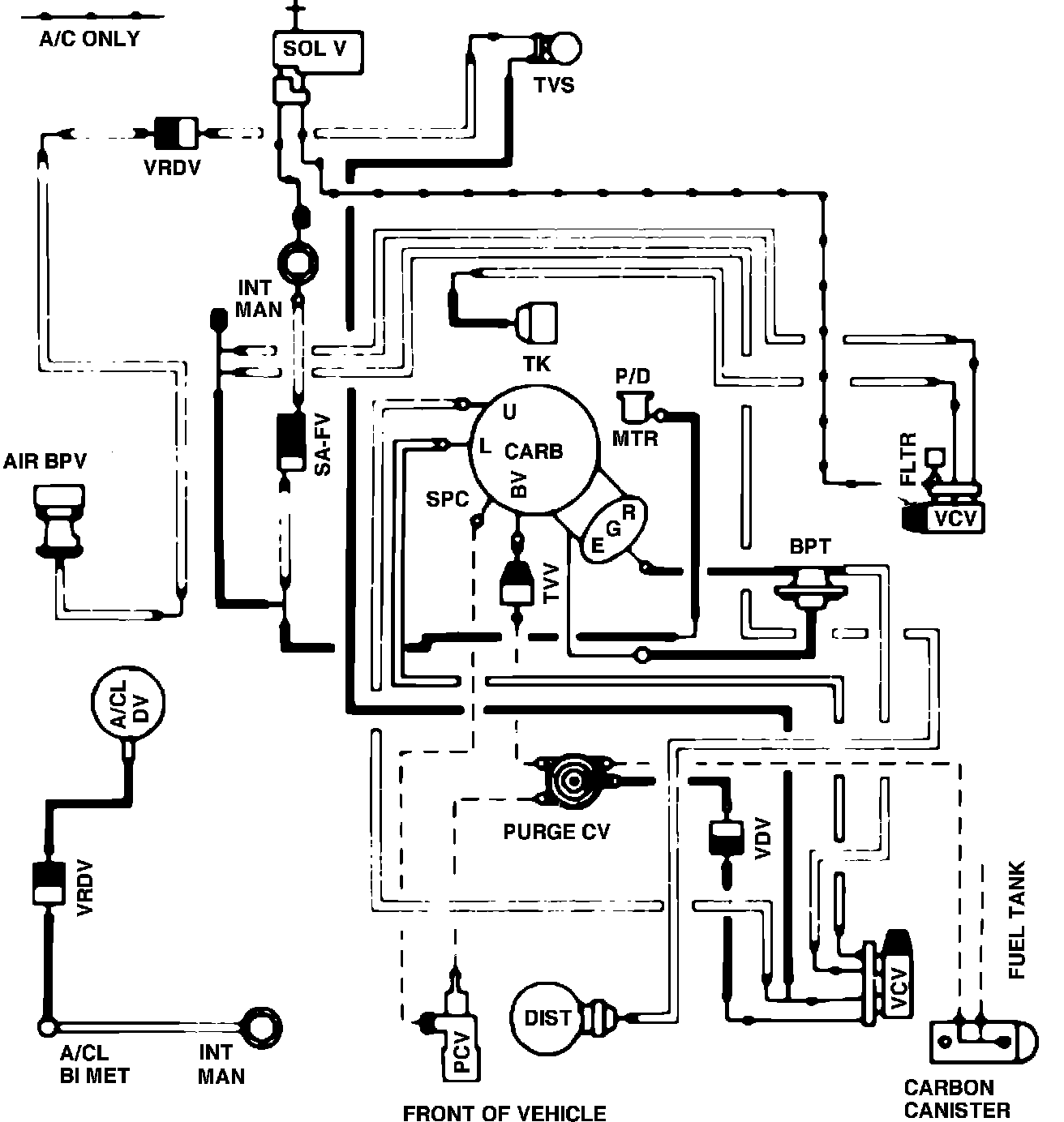

Fig. 8 Calib. Codes 3-49S-R1 & 3-50X-R11
Fig. 8 Calib. Codes 3-49S-R1 & 3-50X-R11
Fig. 8 Vacuum hose routing. 1983 4-140 calib. codes 3-49S-R1 & 3-50X-R11:
