With Manual Transmission
With Manual Transmission

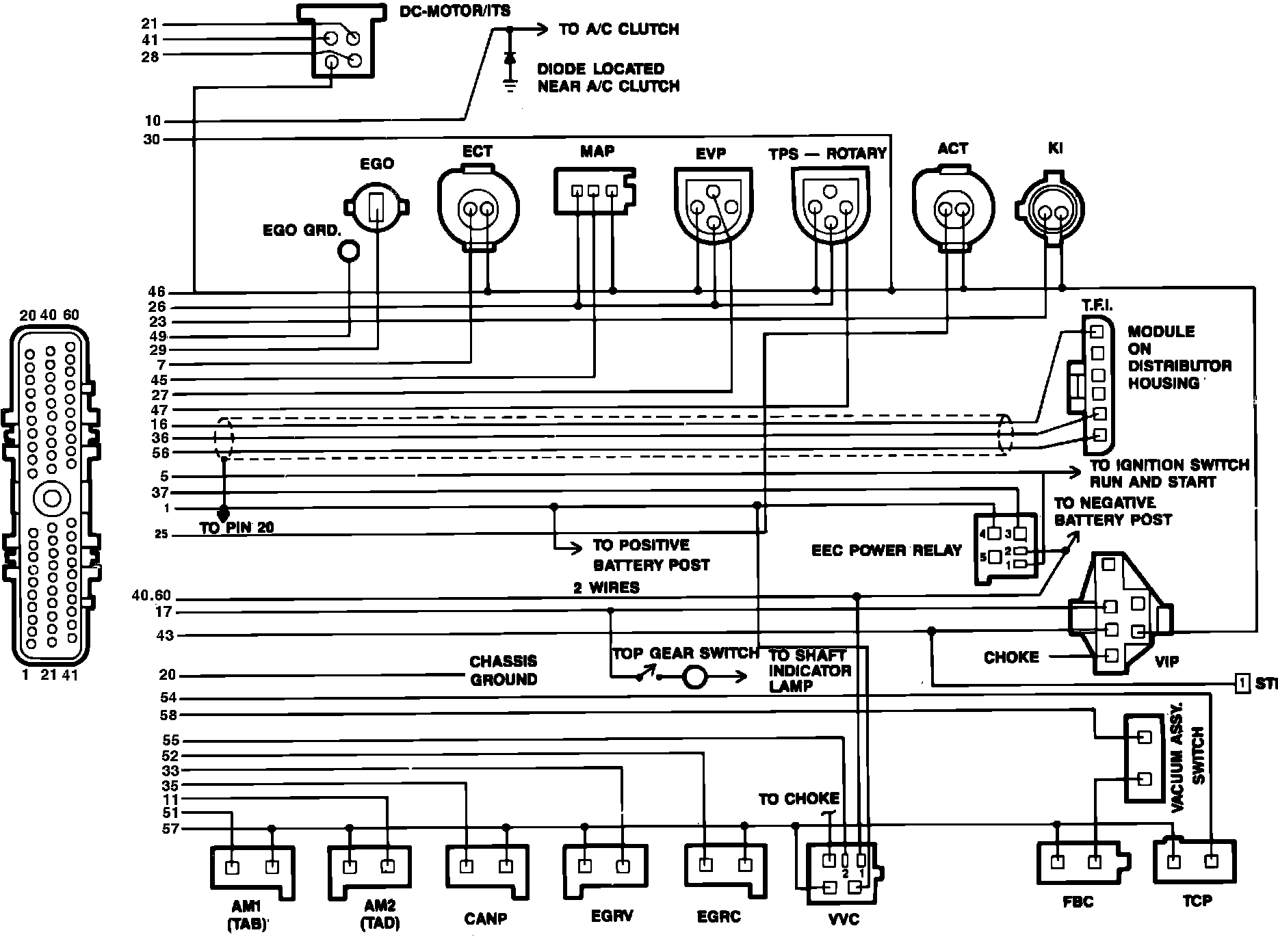

Fig.. 37 EEC-IV wiring Schematic. 1983 V6-171 w/ man. trans.:
