Engine Mount: Service and Repair

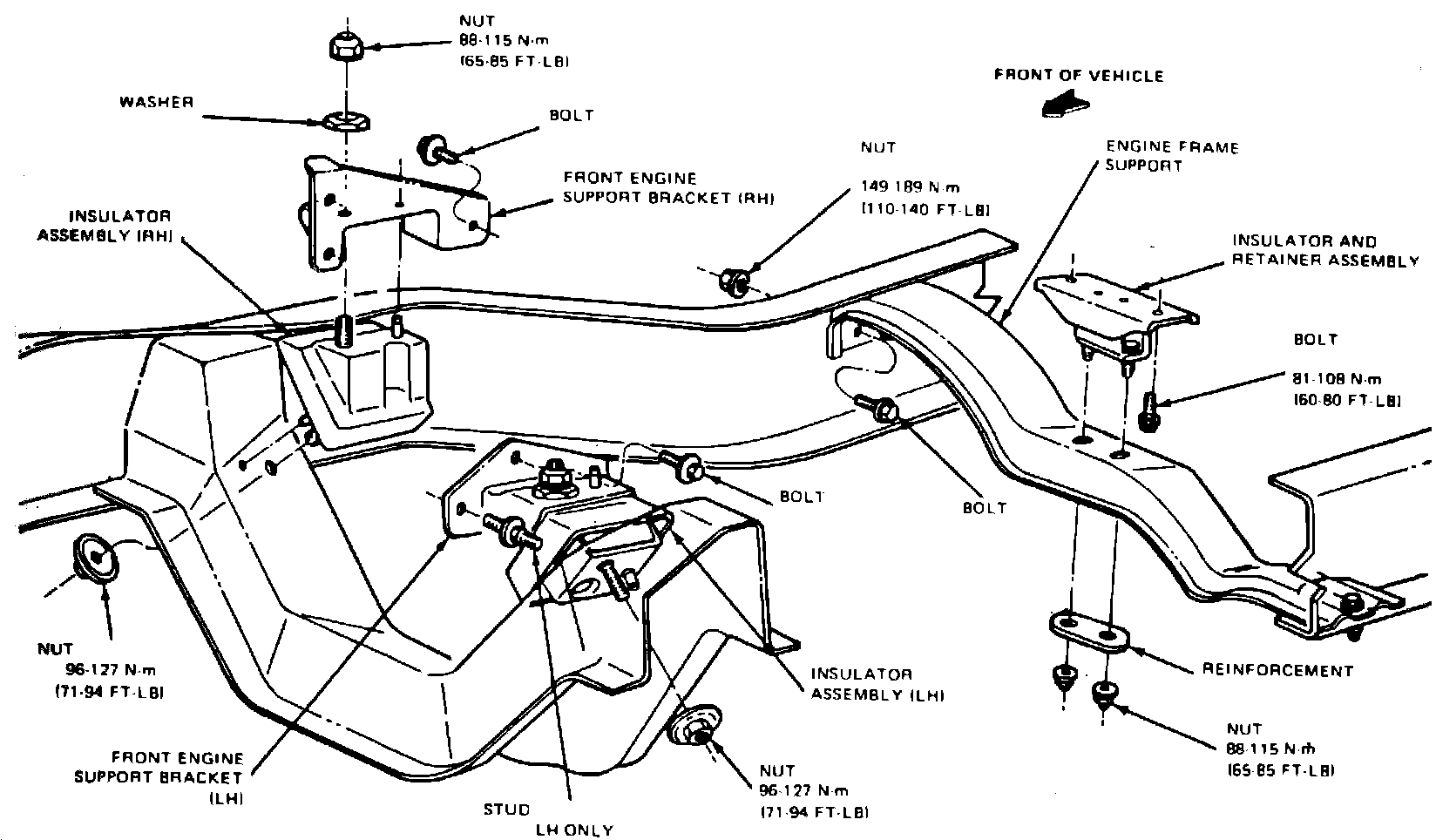

�FWFig. 1 Engine mounts:

1. Remove fan shroud attaching screws, then support engine using a suitable jack and block of wood under oil pan.
2. Remove insulator-to-crossmember attaching nuts and washers, then raise engine until insulator stud clears crossmember.
3. Remove fuel pump shield-to-left side engine bracket attaching bolt, if necessary.
4. Remove mount-to-cylinder block attaching bolts and the mount, Fig. 1.
5. Reverse procedure to install. Refer to Fig. 1 for torque specifications.
