EEC IV Wiring Harness - Manual Correction

84ford14

Article No. 84-11-18


ENGINE SERVICE HIGHLIGHTS TRAINING MANUAL - REVISION TO EEC IV WIRING DIAGRAM - (2.8L)


LIGHT TRUCKS 1983-84 RANGER; 1984 BRONCO II

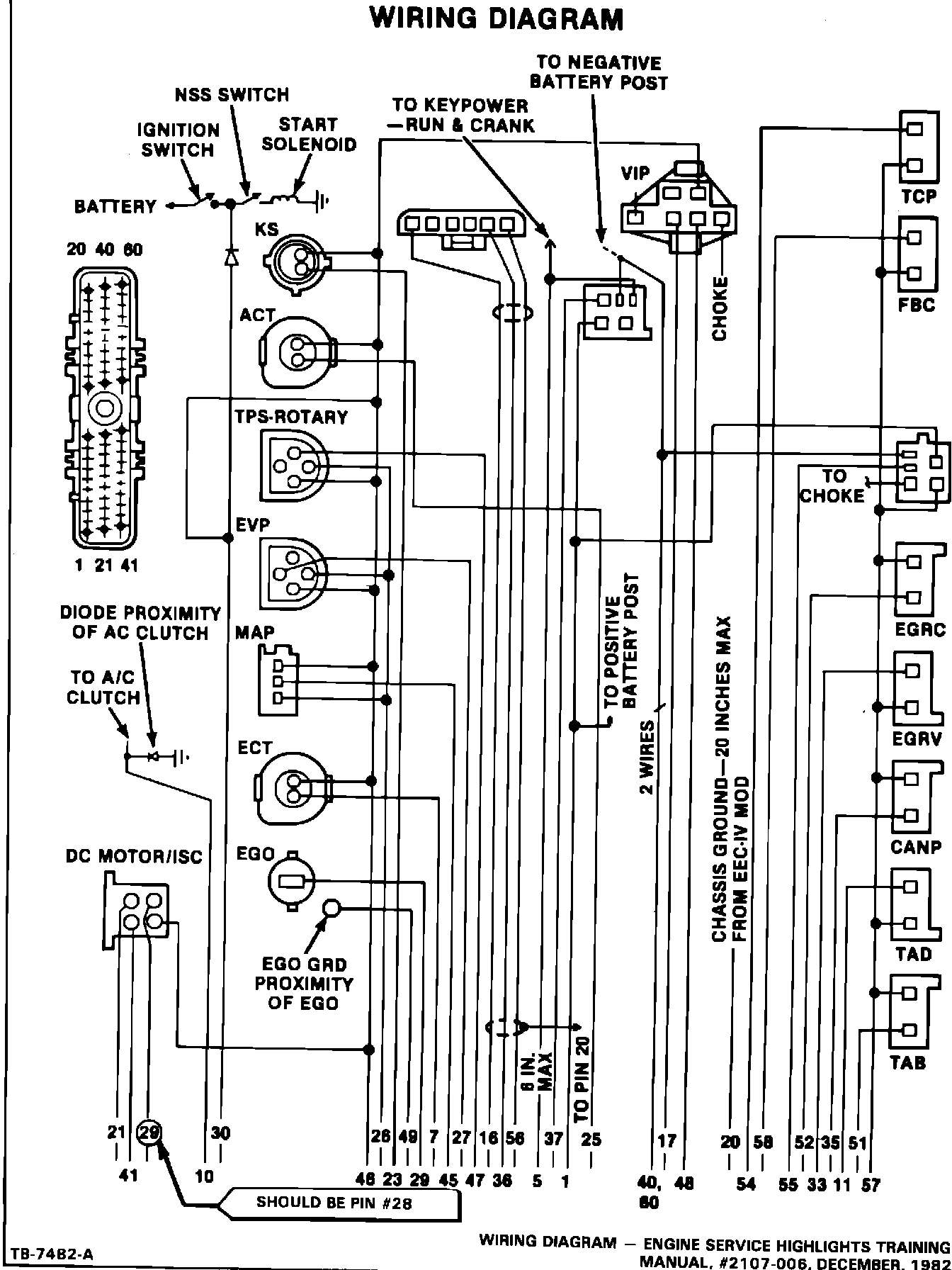

FIGURE 16:

A correction to the 2.8L EEC IV wiring diagram in the "Engine Service Highlights Training Manual #2107-006" should be made. Pin 29 going to the idle speed control motor should read 28, not 29 (See Figure 16).
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
