Diesel Data
: Automotive Repair
Home
>>
Ford Truck
>>
1983
>>
Ranger 4WD V6-171 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>

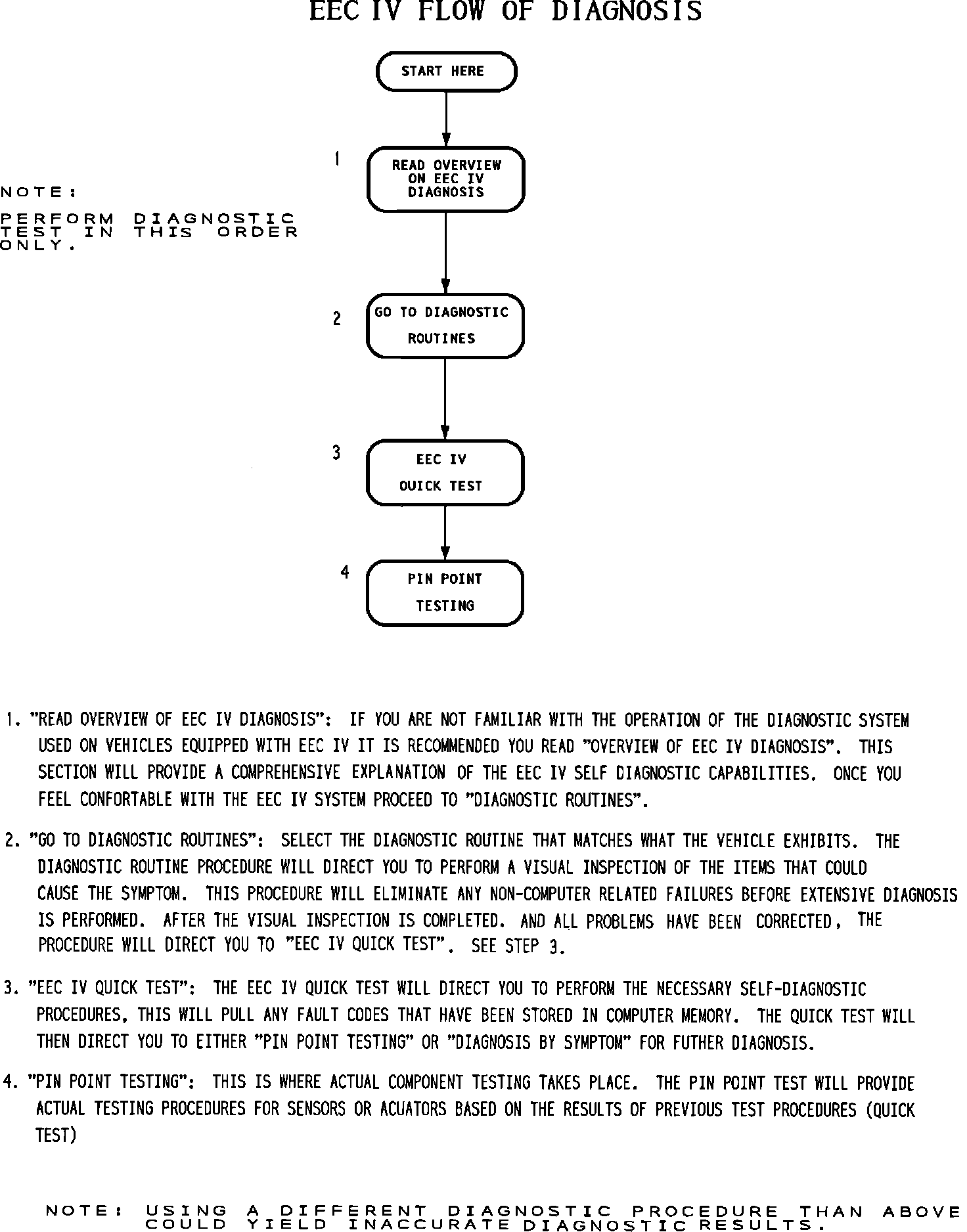

Flow of Diagnosis
Flow of Diagnosis
Flow Of Diagnosis:
