Home
>>
Ford Truck
>>
1983
>>
Ranger 4WD V6-171 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
G - Manifold Absolute Pressure Sensor
>>

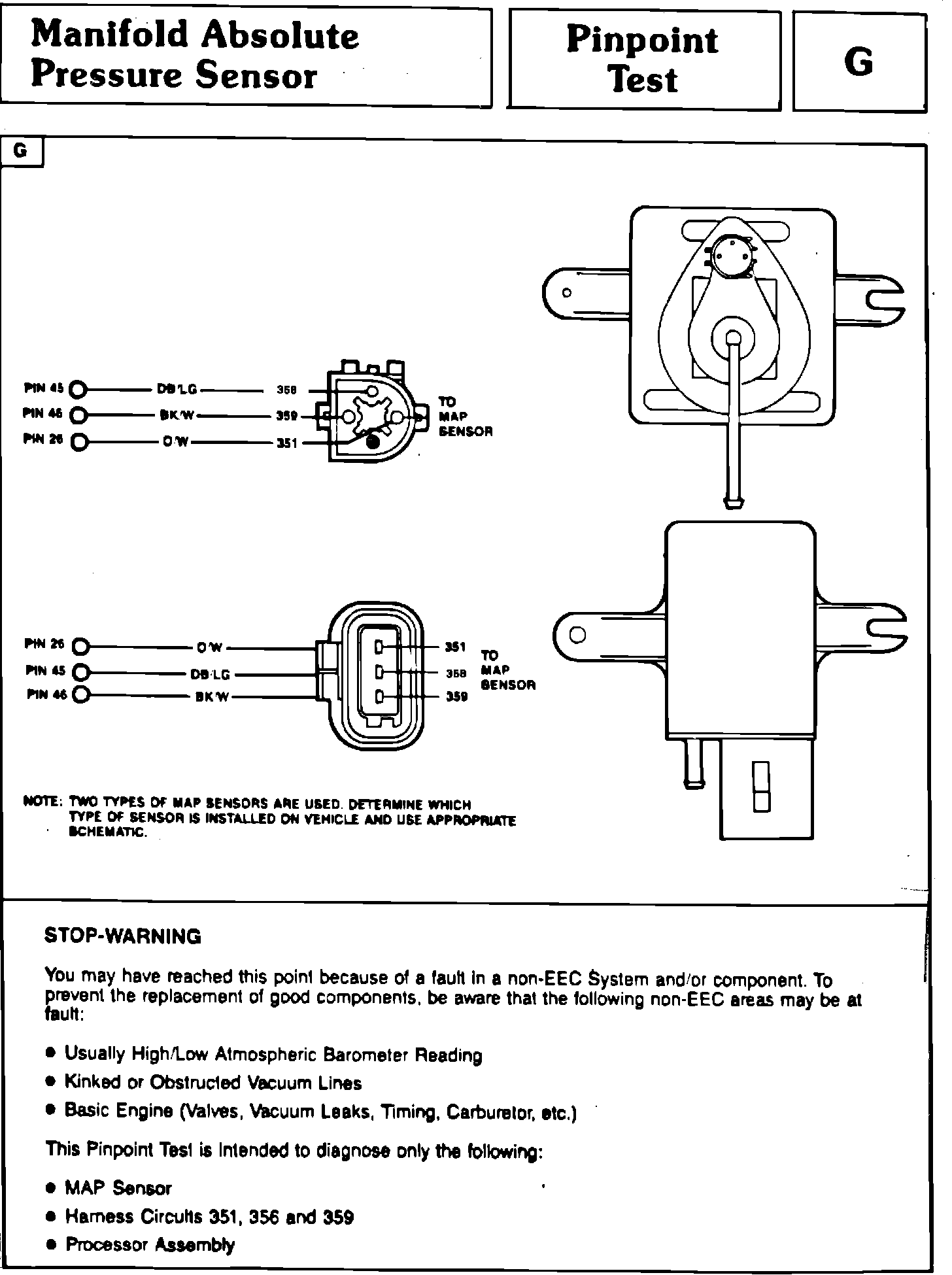

Testing Notes and Wiring Diagram
Testing Notes and Wiring Diagram
*** UPDATED BY TSB #84320
