Vacuum and Vapor Hose Diagrams
>>
W/Automatic Trans.
W/Automatic Trans.

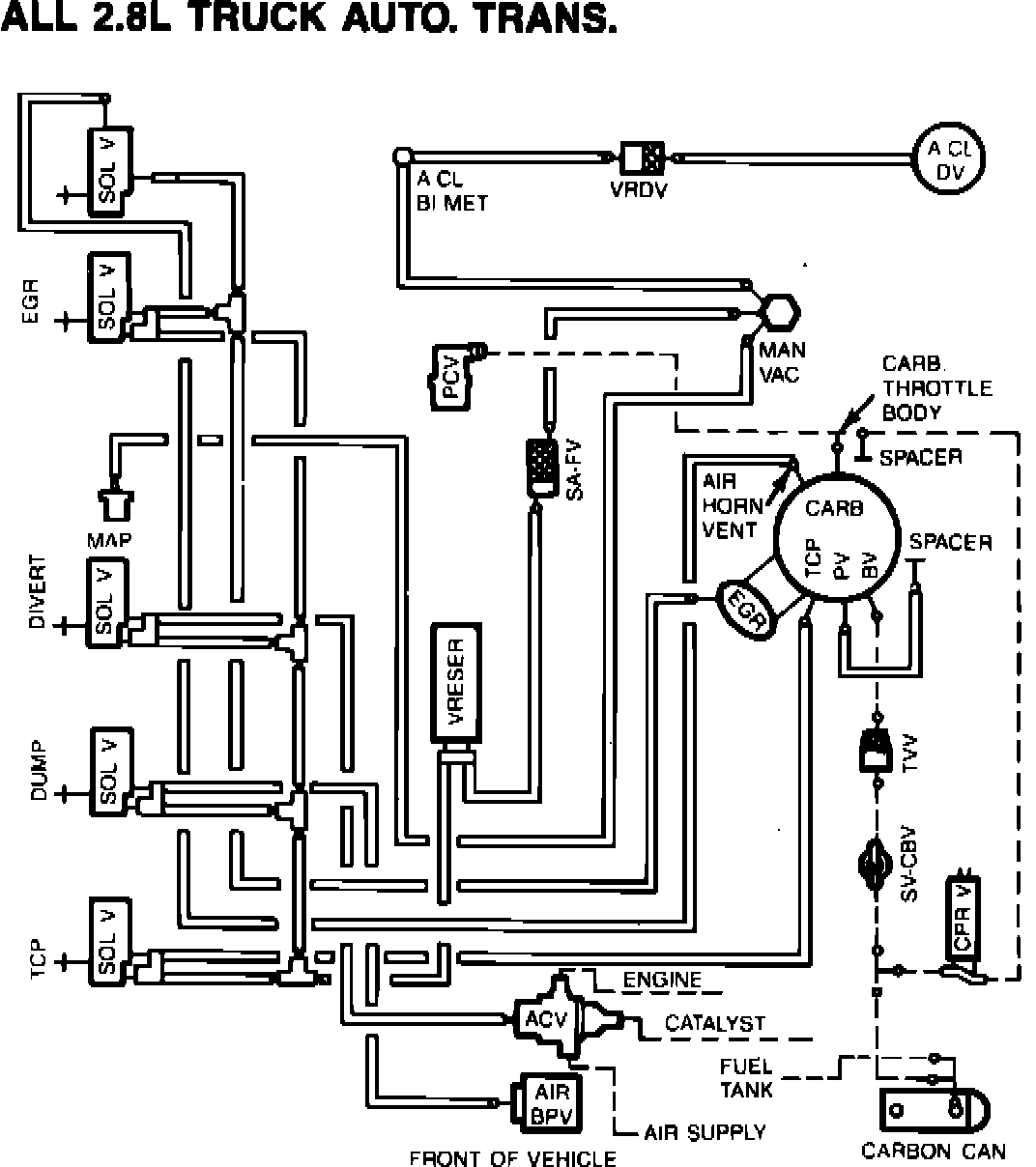

Fig. 36 Vacuum Schematic. 1983 V6-171:
