Diesel Data
: Automotive Repair
Home
>>
Ford Truck
>>
1983
>>
Ranger 4WD V6-171 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Primary Circuit Tests
>>

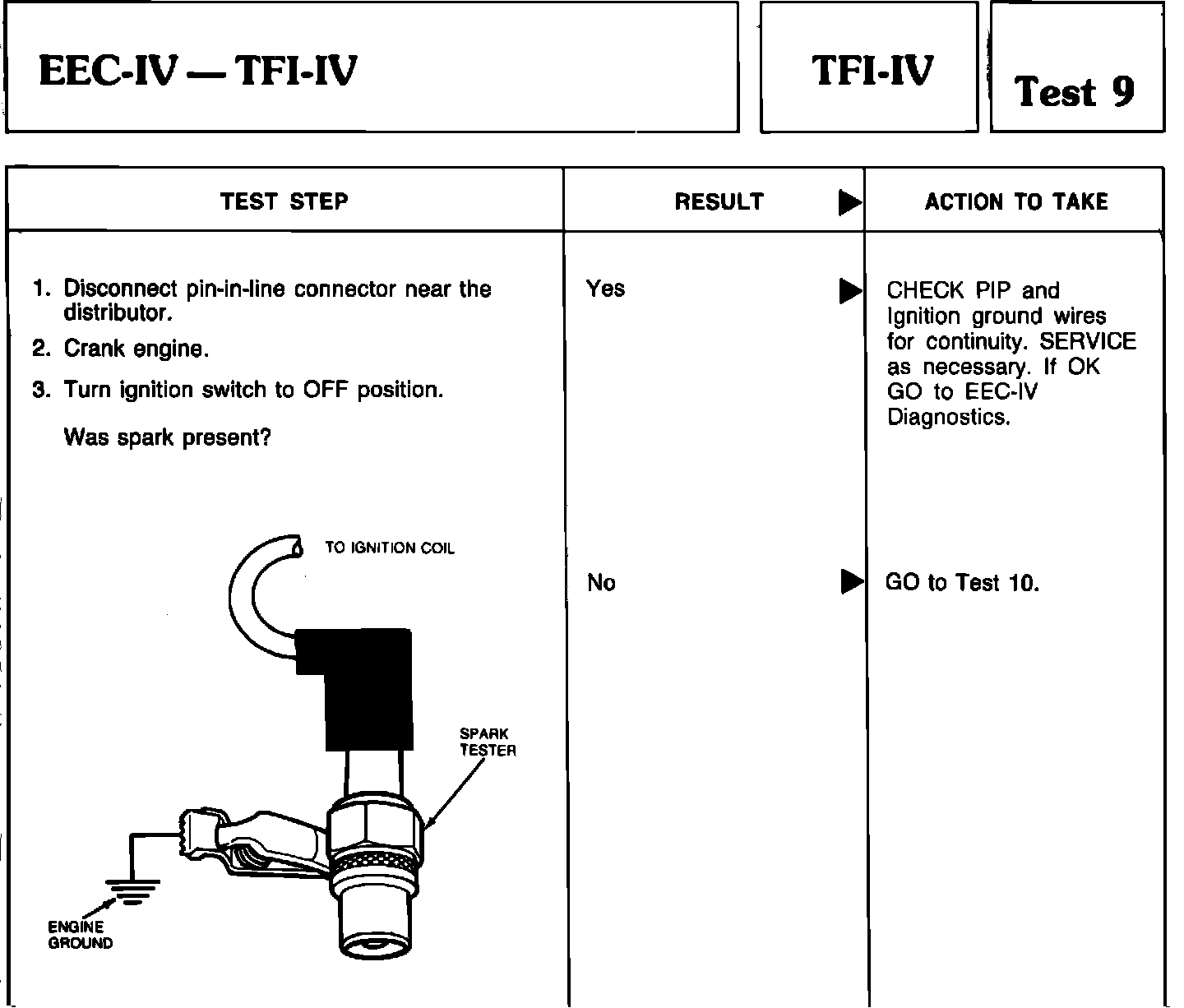

Test 9, EEC-IV -- TFI-IV
Test 9, EEC-IV -- TFI-IV
*** UPDATED BY TSB #87-21-10
