Speaker - Instrument Panel

Speaker - Instrument Panel

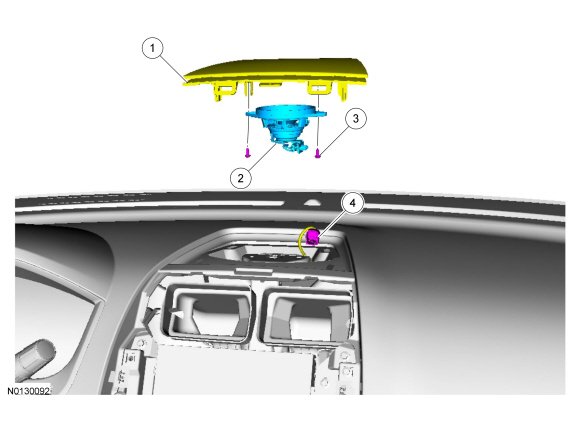

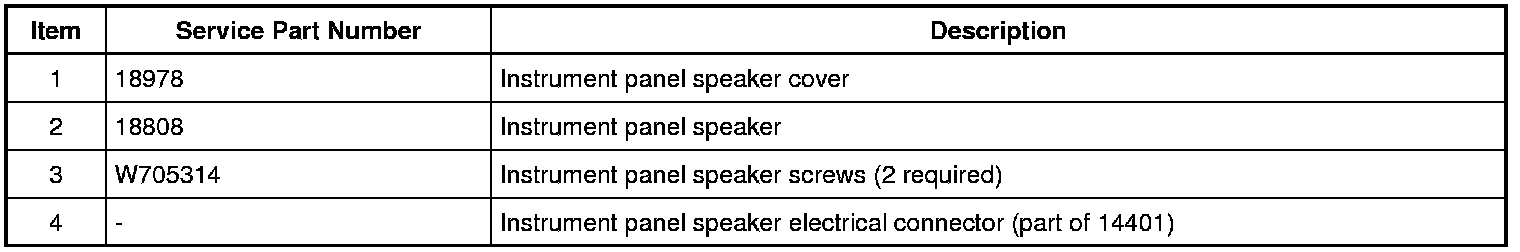

Exploded View










Removal

1. Remove the FCIM (Front Controls Interface Module). REFER to Front Controls Interface Module (FCIM).

2. Position aside the instrument panel speaker cover.

1. Using a suitable flat-bladed trim removal tool, pry upward to disengage the clips.

3. Remove the 2 screws and the instrument panel speaker.

1. Disconnect the electrical connector.

Installation

1. To install, reverse the removal procedure.
