M/T Torque Data

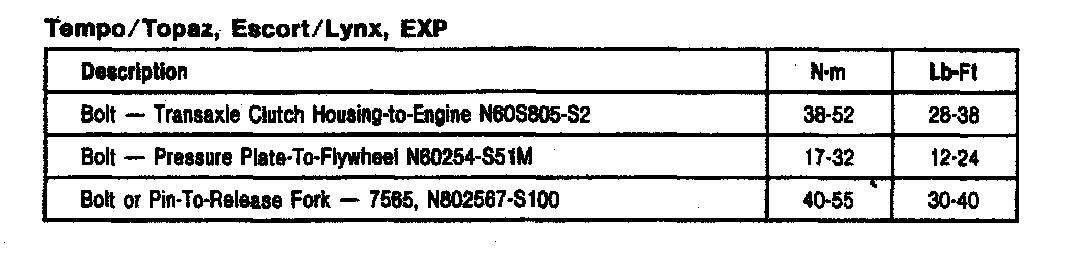

MTX 4-spd M/T, Transaxle Torque:

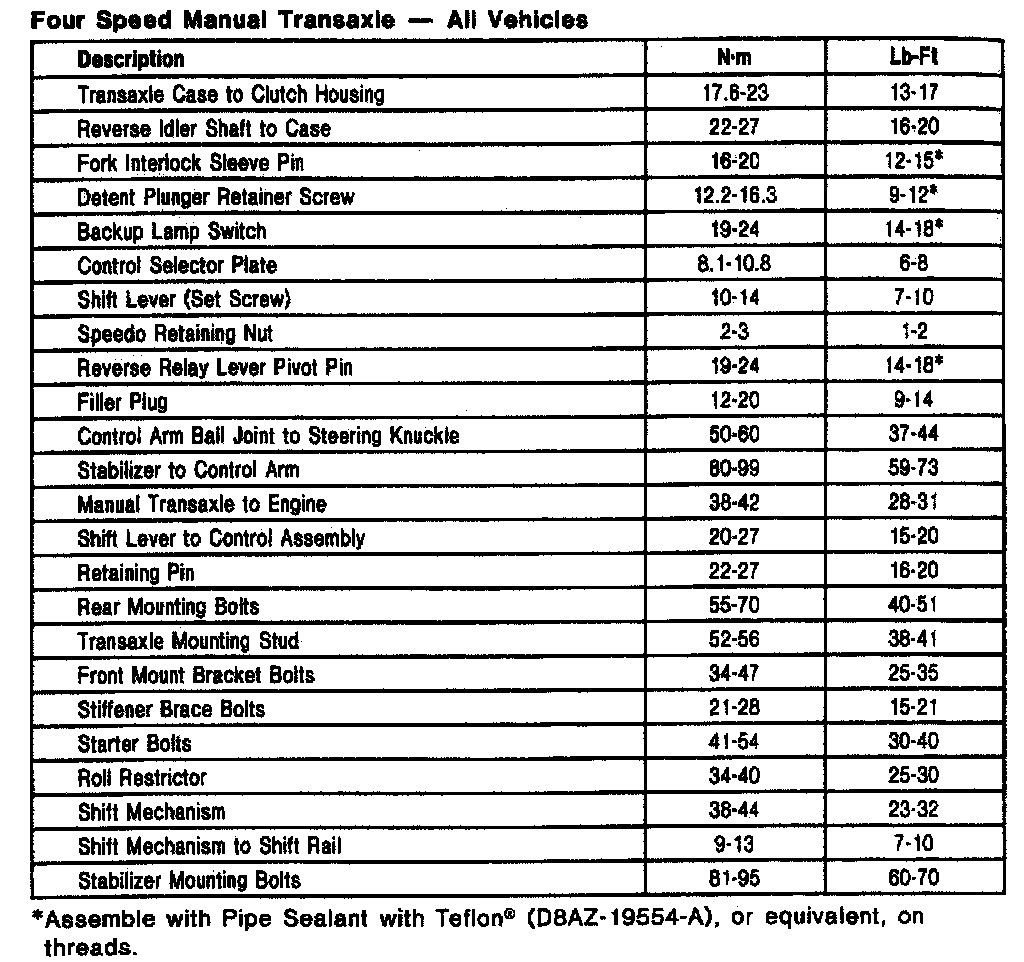

MTX 4-spd M/T, Transaxle Assembly (ALL Vehicles):

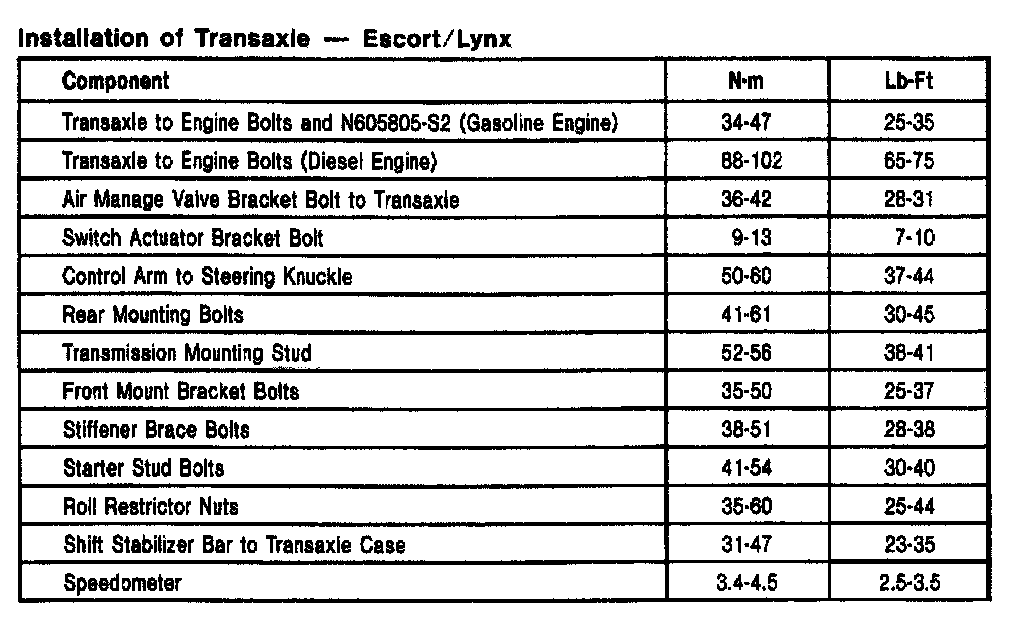

MTX 4-spd M/T, Installation Of Transaxle:
