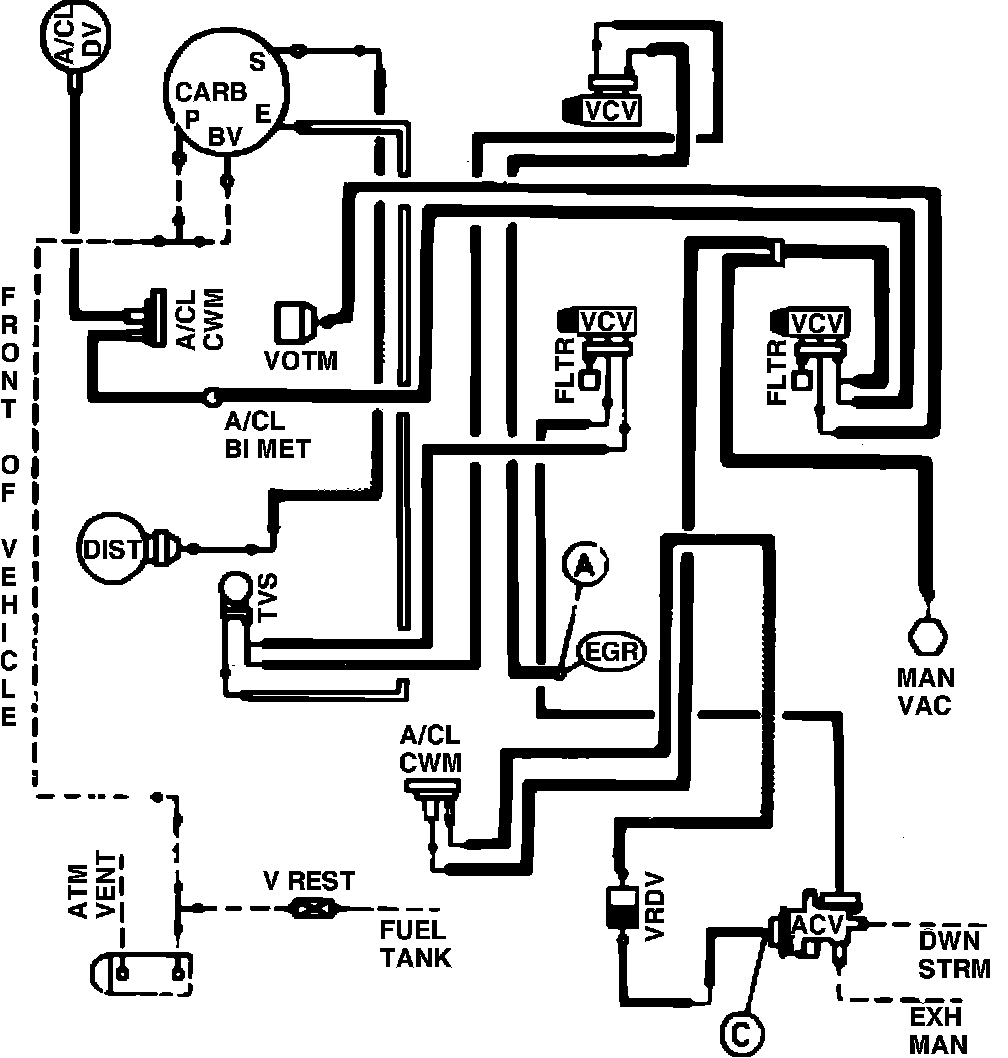

Fig. 13 Calib. Code 2-03C-R0 W/O A/C, Exc. High Alt.
Fig. 13 Calib. Code 2-03C-R0 W/O A/C, Exc. High Alt.
Vacuum hose routing:
