Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>

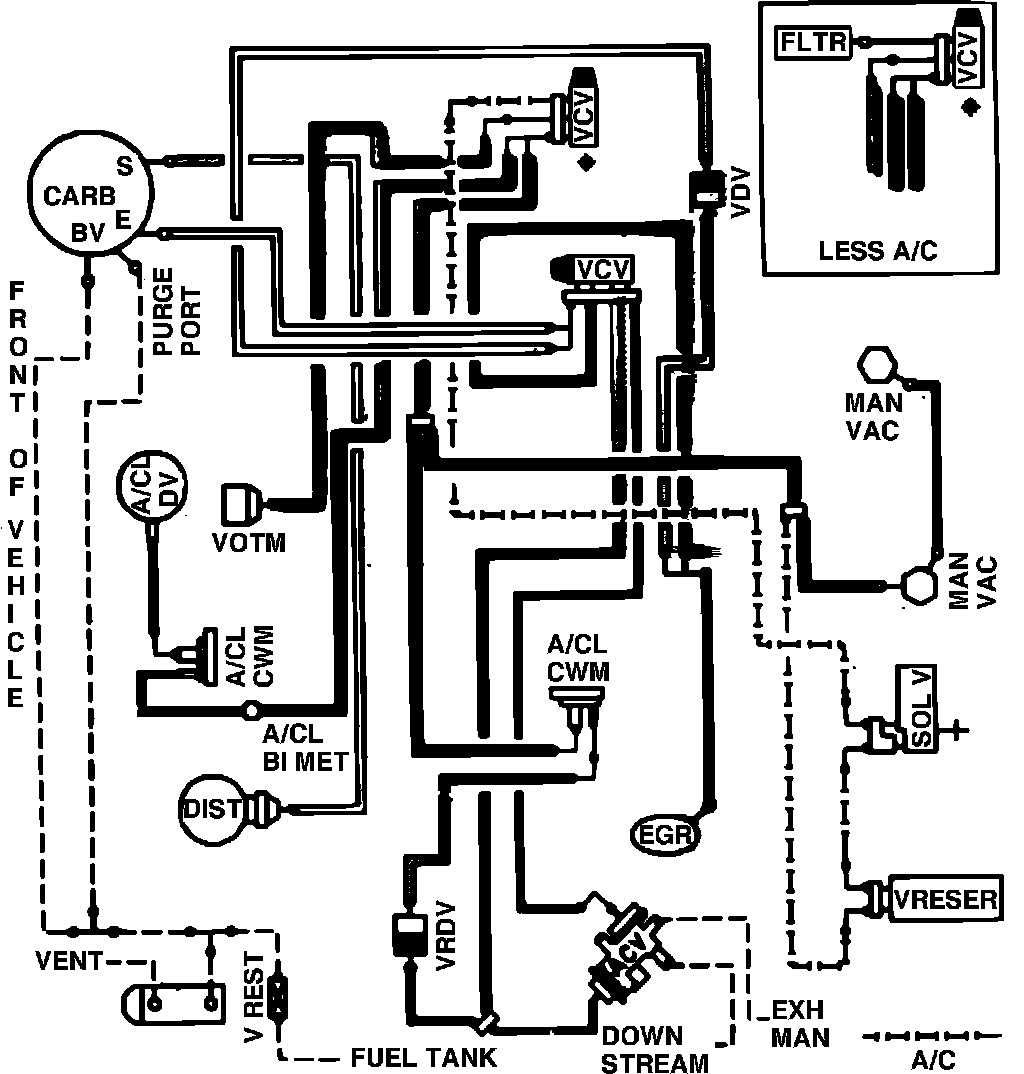

Fig. 24 Calib. Code 2-04C-R0 Federal Exc. High Alt.
Fig. 24 Calib. Code 2-04C-R0 Federal Exc. High Alt.
Vacuum hose routing.:
