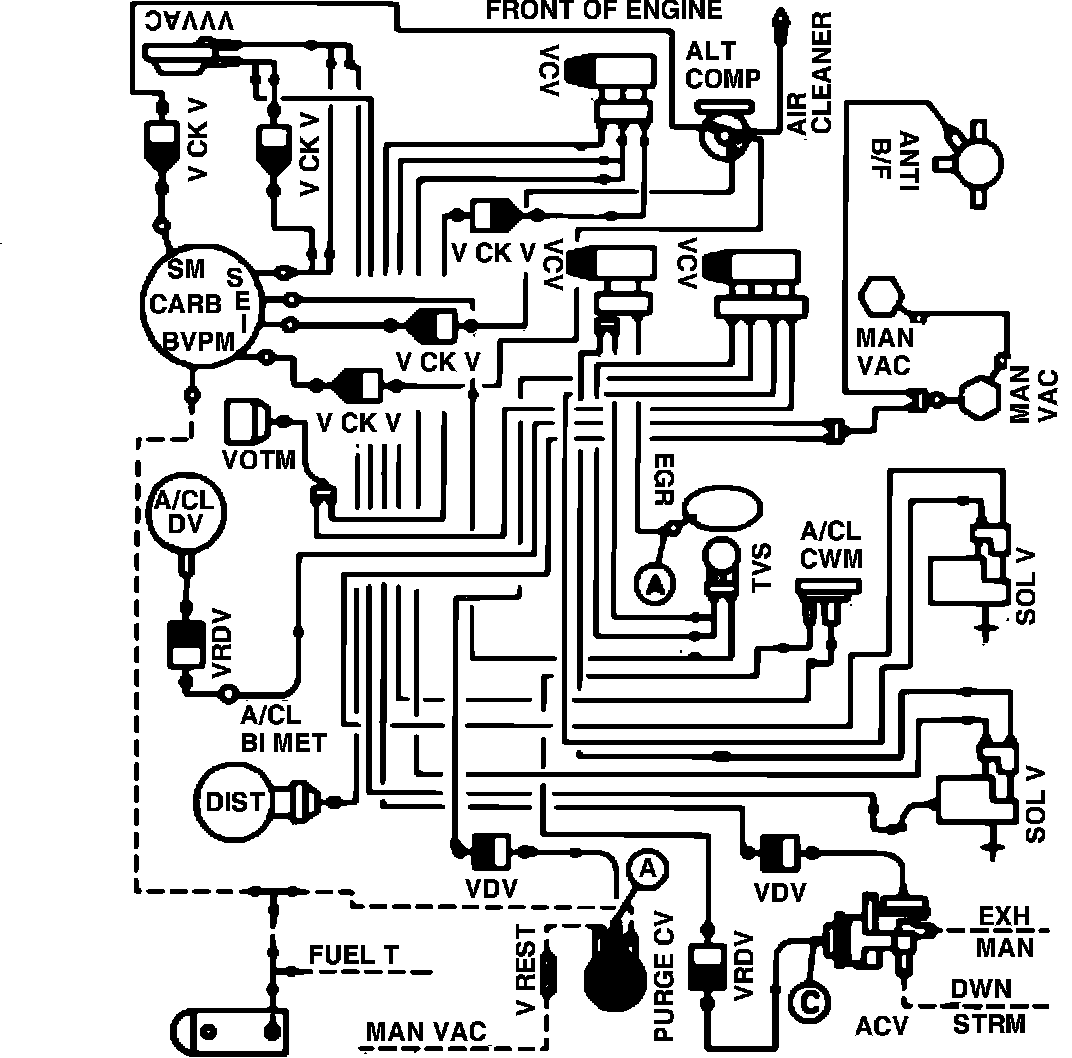

Fig. 6 Calib. Code 1-03Y-R10 W/O A/C, With High Alt.
Fig. 6 Calib. Code 1-03Y-R10 W/O A/C, With High Alt.
Vacuum hose routing:
