Home
>>
Ford
>>
1982
>>
Fairmont V8-255 4.2L VIN D 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
Emission Control Systems

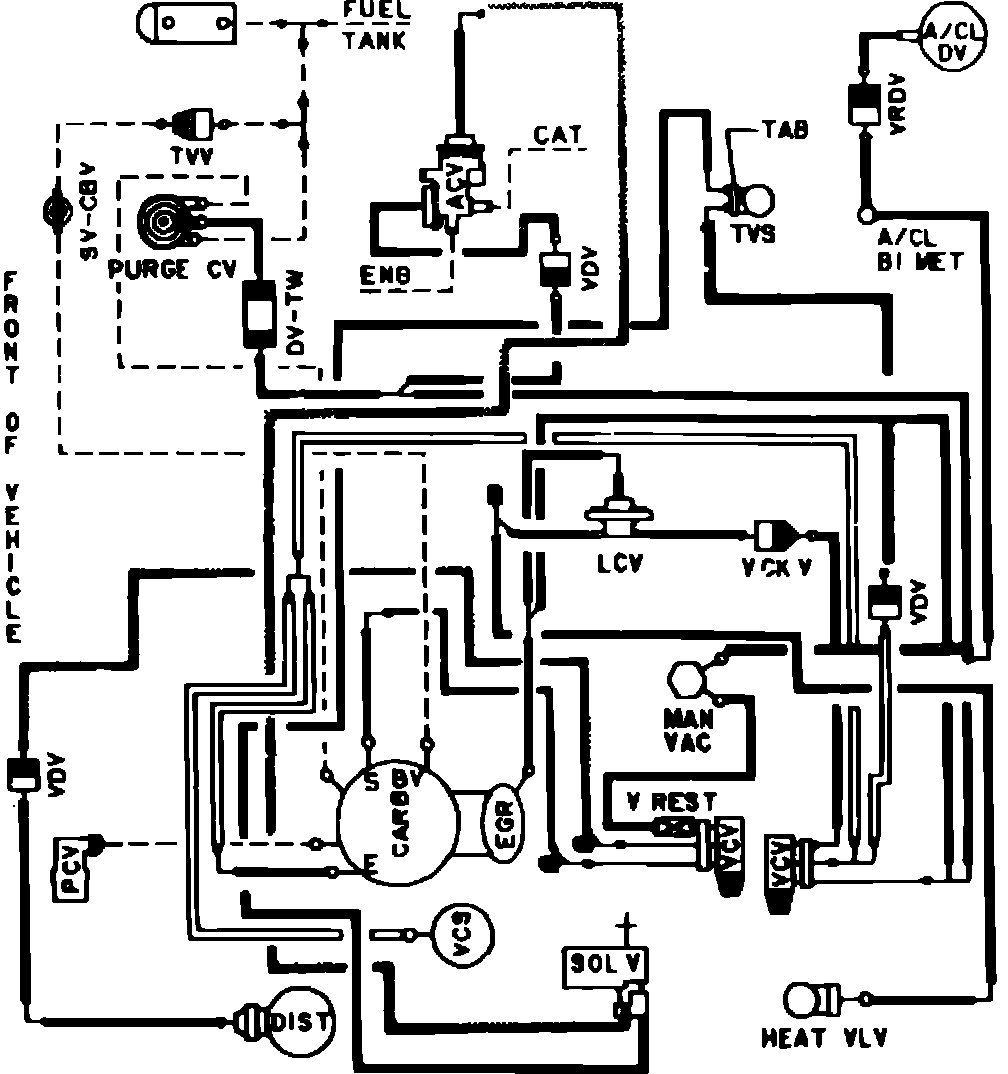

Vacuum hose routing:
