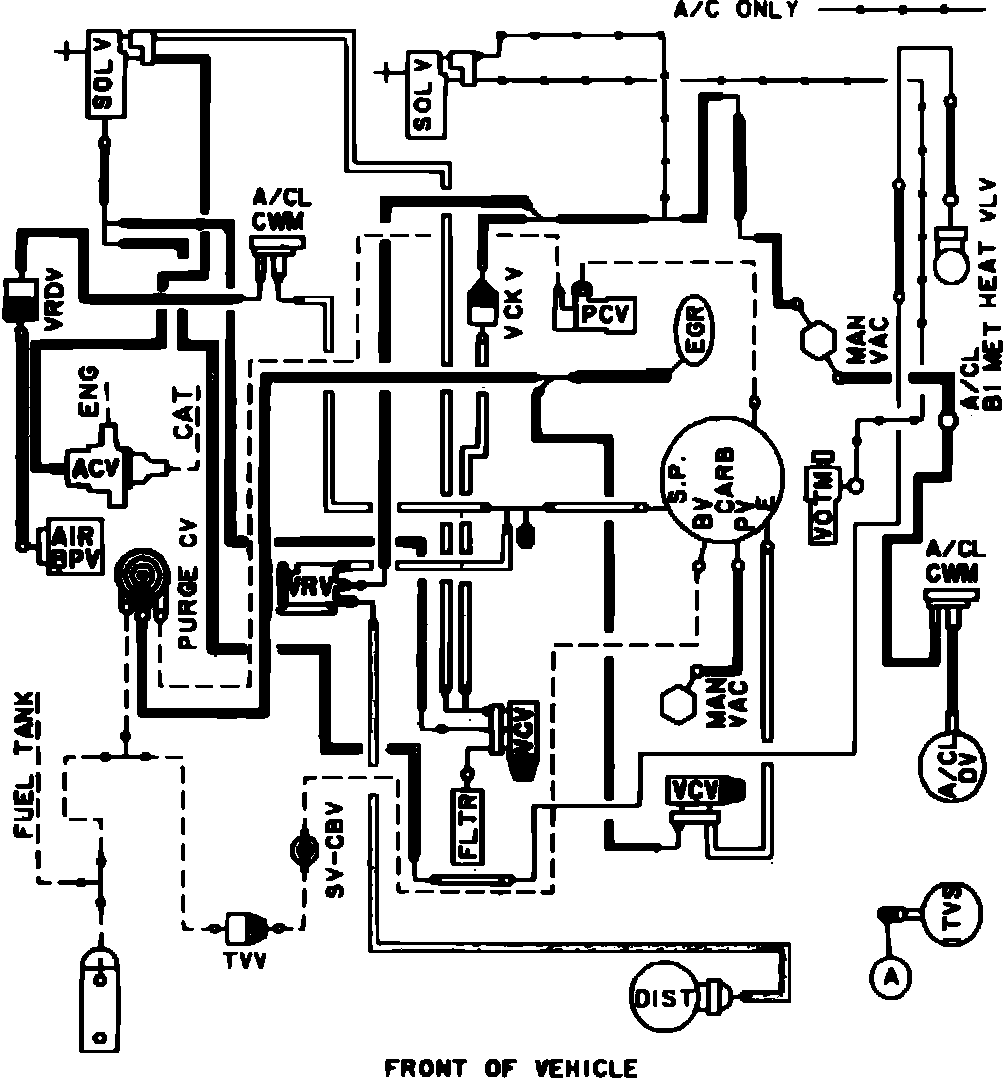

Fig. 49 Calib. Code 2-14B-R10 Federal, Exc. High Alt.
Fig. 49 Calib. Code 2-14B-R10 Federal, Exc. High Alt.
Vacuum hose routing:
