Diesel Data
: Automotive Repair
Home
>>
Ford
>>
1982
>>
Granada V6-232 3.8L VIN 3 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

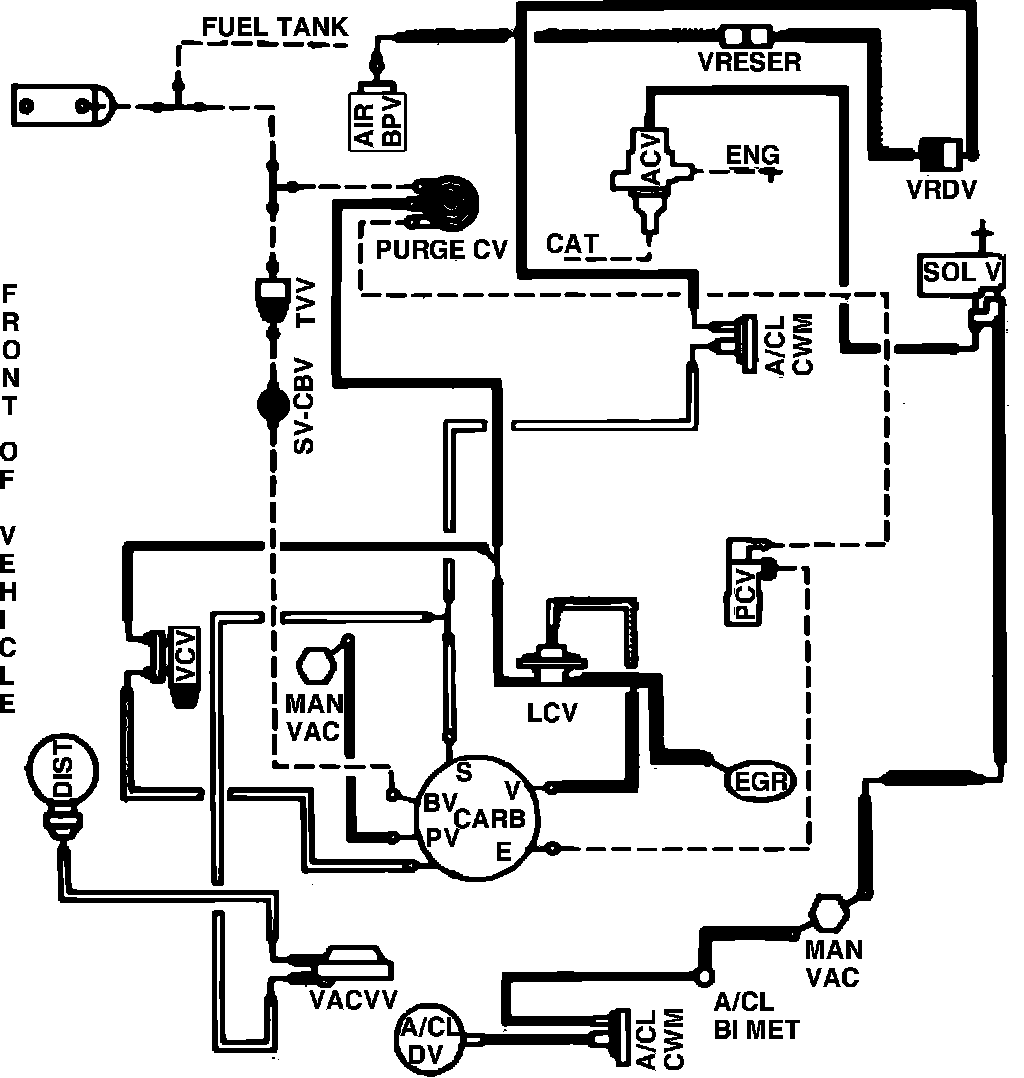

Fig. 47 Calib. Code 2-14A-R13 Federal, Exc. High Alt.
Fig. 47 Calib. Code 2-14A-R13 Federal, Exc. High Alt.
Vacuum hose routing:
