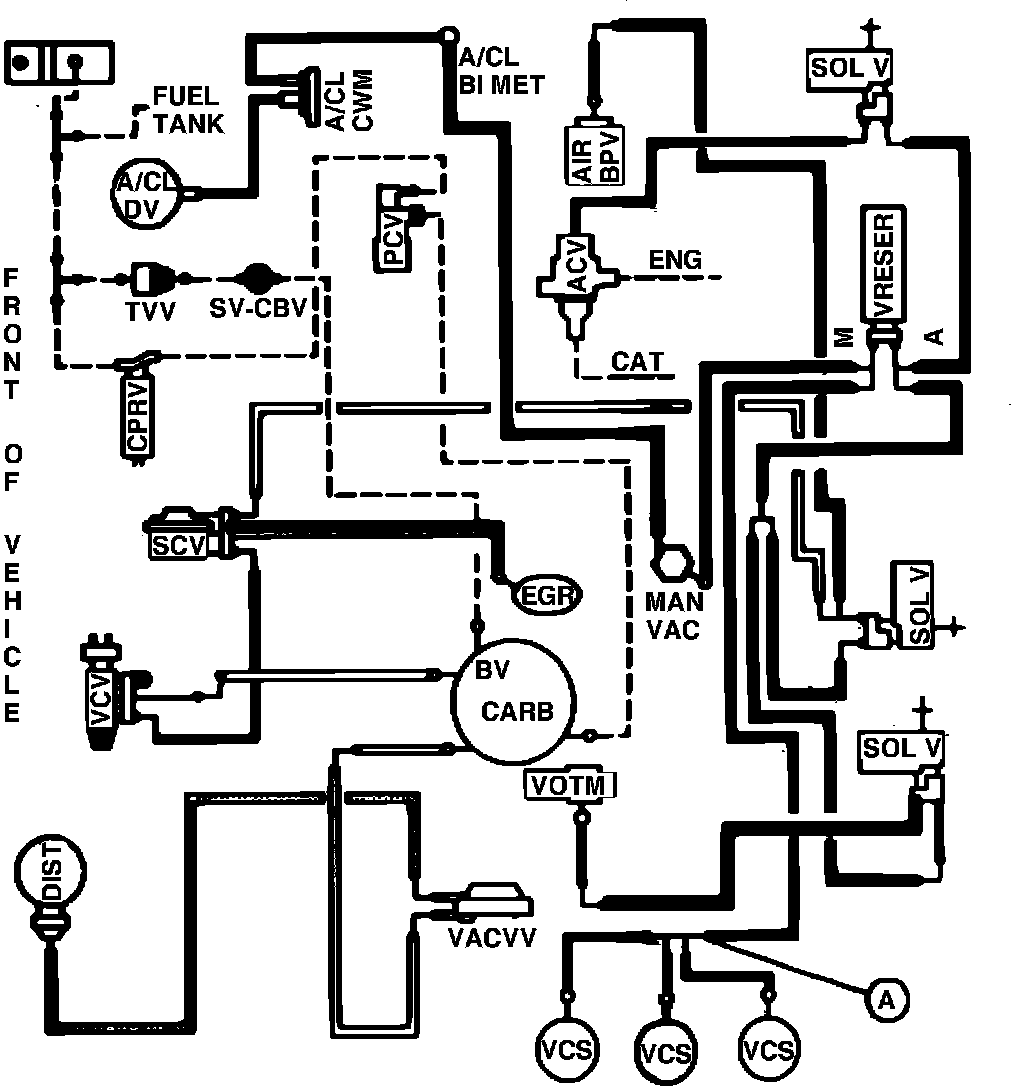

Fig. 56 Calib. Codes 2-14N-R0, 2-14N-R01 & 2-14N-R10 Calif.
Fig. 56 Calib. Codes 2-14N-R0, 2-14N-R01 & 2-14N-R10 Calif.
Vacuum hose routing:
