Home >> Ford >> 1982 >> LTD Crown Victoria V8-351 5.8L VIN G Windsor 2-bbl HP >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> 2-76J - R20

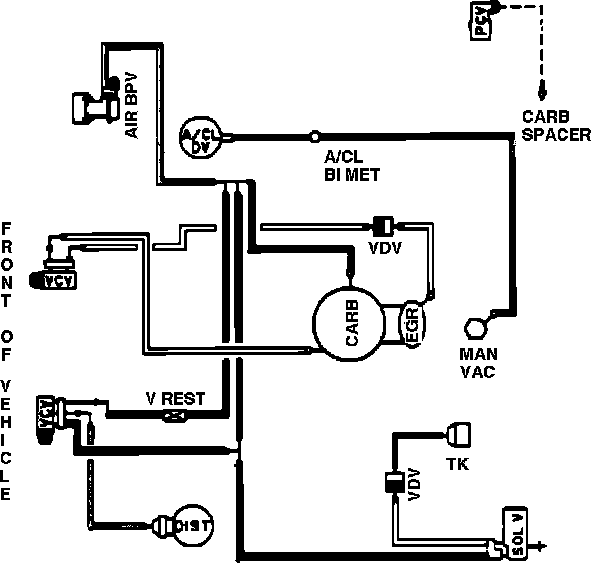

2-76J - R20

Calibration: 2-76J-R20:
