Diesel Data
: Automotive Repair
Home
>>
Ford
>>
1982
>>
LTD Wagon V8-351 5.8L VIN G Windsor 2-bbl HP
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>
With Thermactor
>>
Calib. Code 2-24P-R11
Calib. Code 2-24P-R11

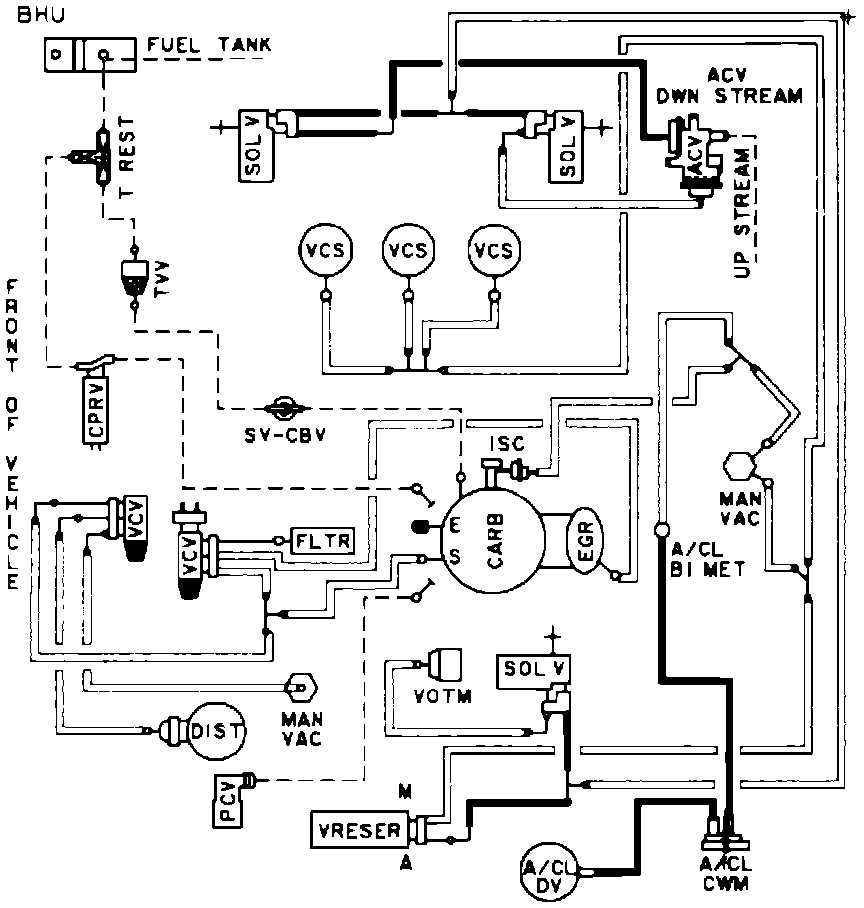

Vacuum Hose Routing:
