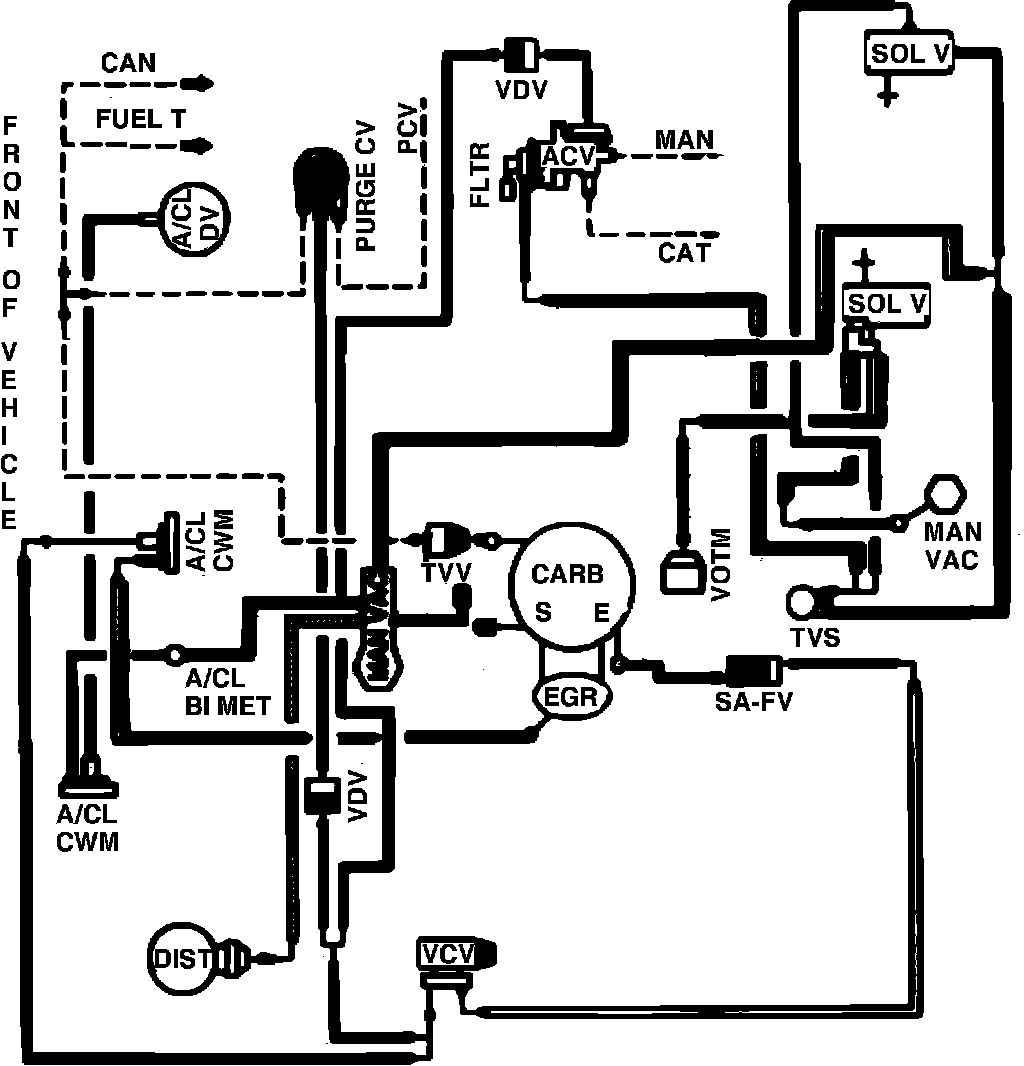

Fig. 30 Calib. Code 2-05B-R0 Federal Exc. High Alt.
Fig. 30 Calib. Code 2-05B-R0 Federal Exc. High Alt.
Vacuum hose routing:
