General Engine Specifications

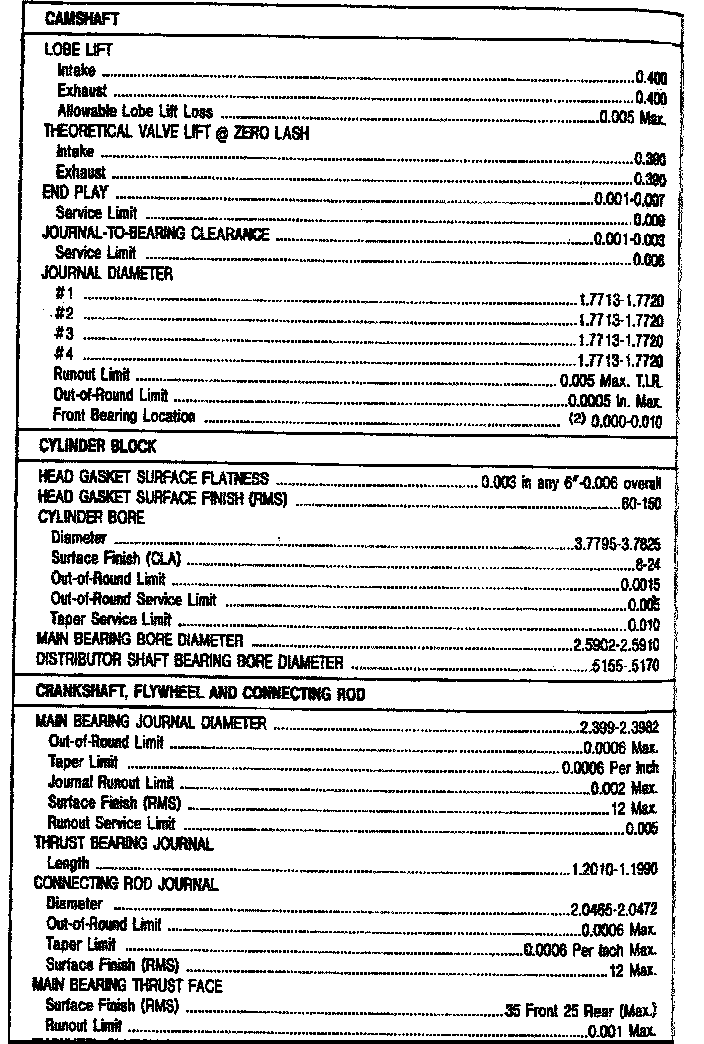

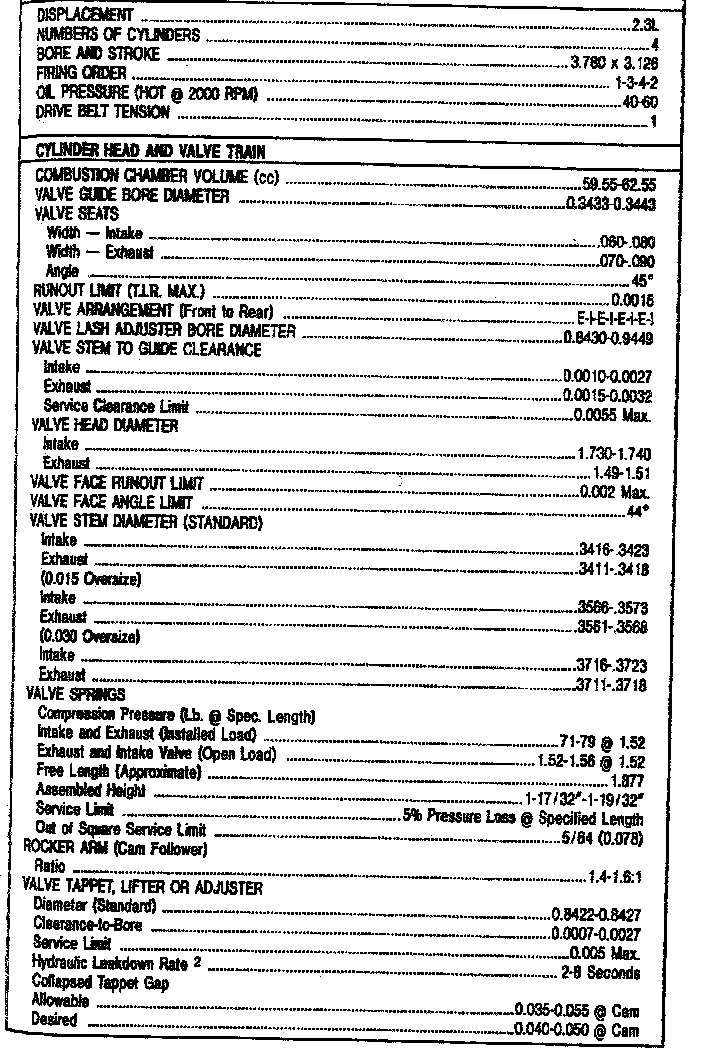

2.3L SOHC Engine Mechanical Data:

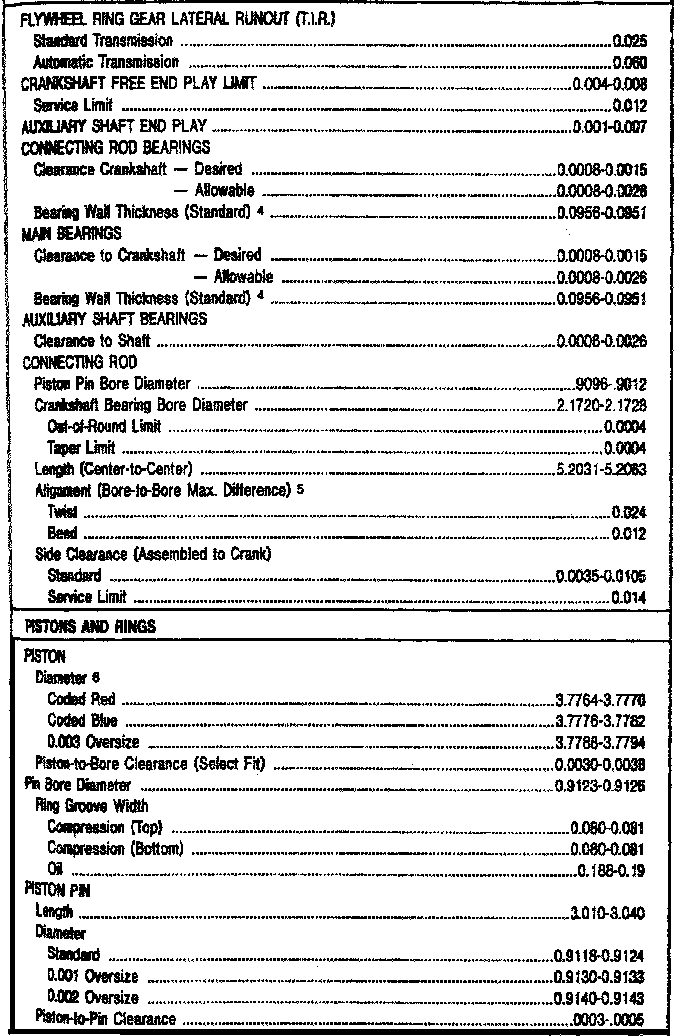

2.3L SOHC Engine Mechanical Cont.:

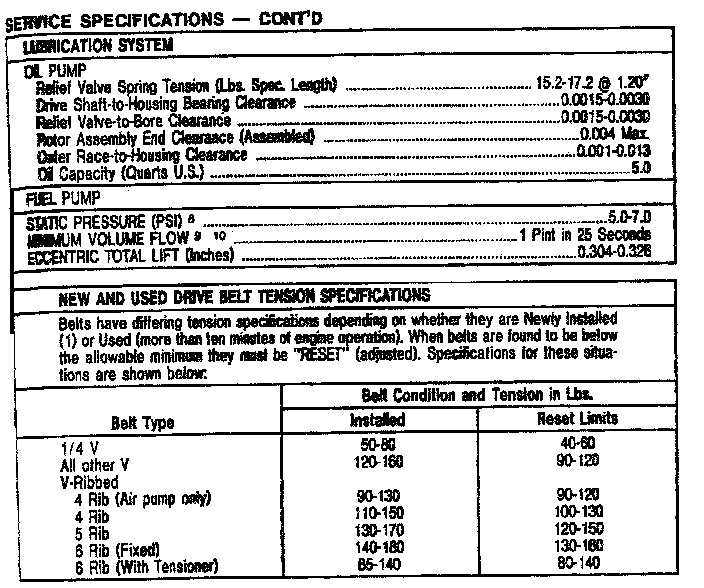

2.3L SOHC Engine Mechanical Cont.:

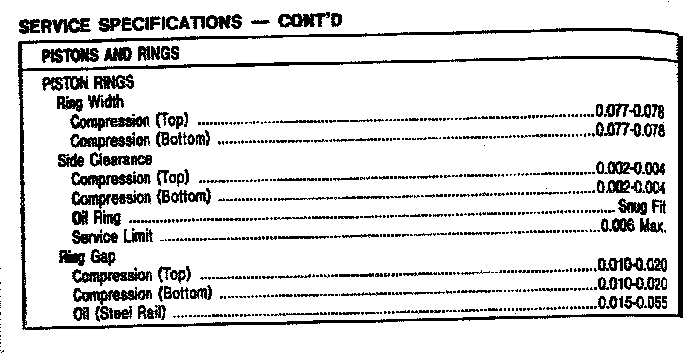

2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:
