Ford
>>
1982
>>
Mustang V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
With Thermactor
>>
Manual
Manual

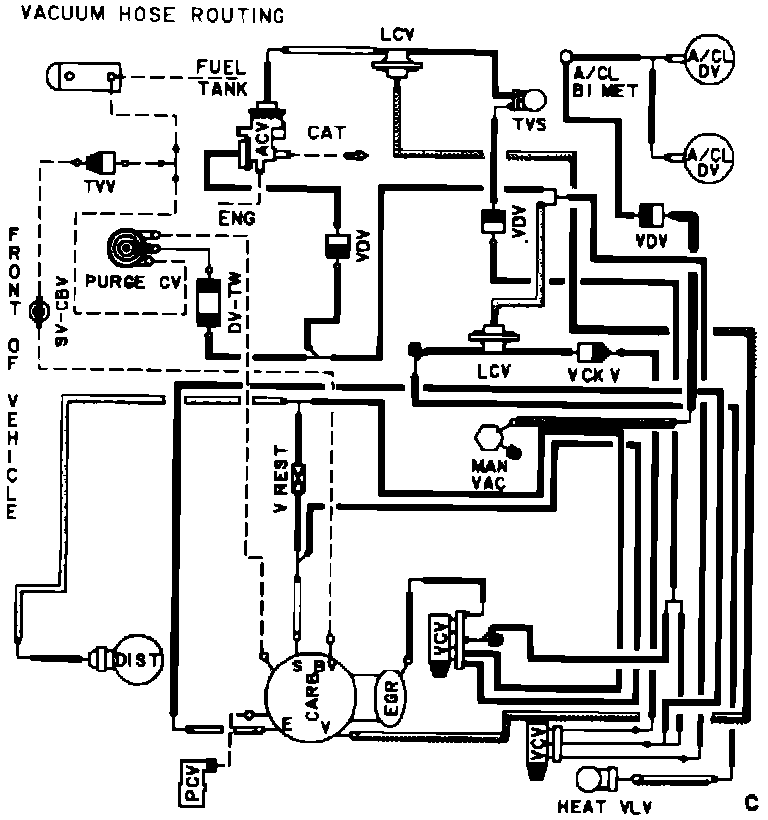

Vacuum Hose Routing:
