Home
>>
Ford
>>
1982
>>
Mustang V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>

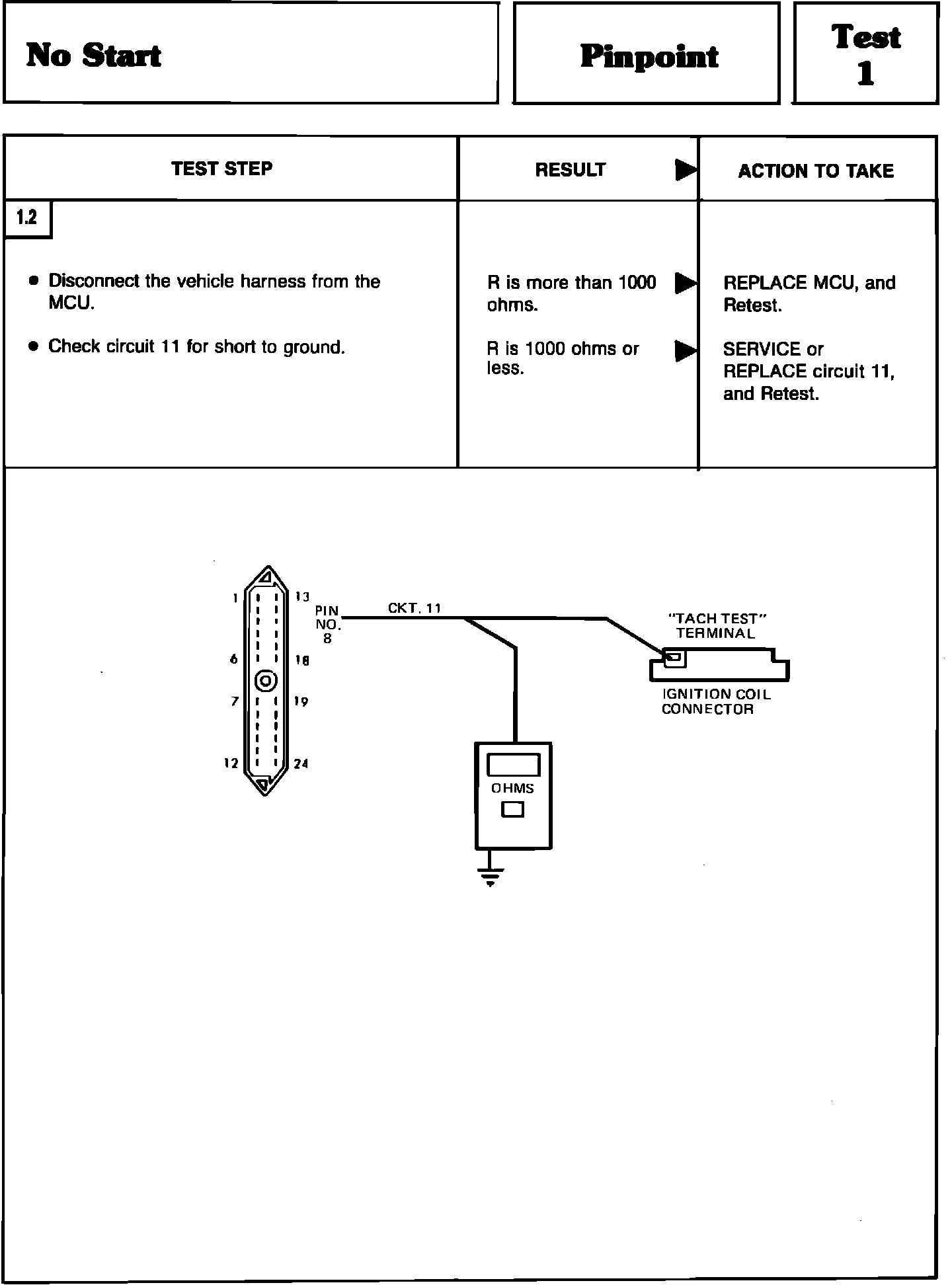

1.2 & Wiring Diagram
1.2 & Wiring Diagram
Test Step 1.2:
