10.0 Thru 10.54 - Thermactor Check
>>

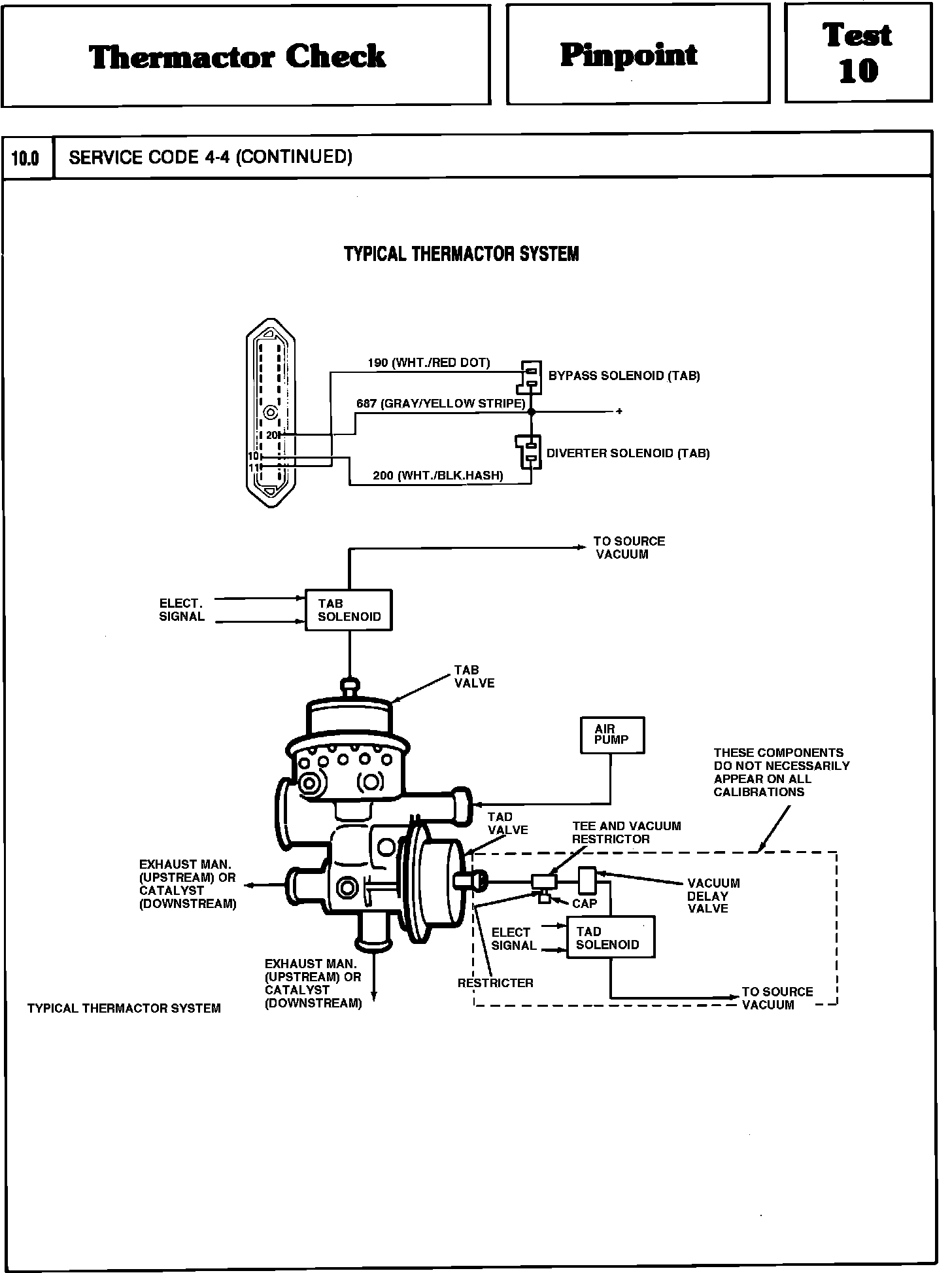

10.0 Service Code 4-4 & Wiring Diagram
10.0 Service Code 4-4 & Wiring Diagram
Test Step 10.0:
