Diesel Data
: Automotive Repair
Home
>>
Ford
>>
1982
>>
Mustang V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
12.0 Thru 12.31 - Thermactor Air Bypass
>>

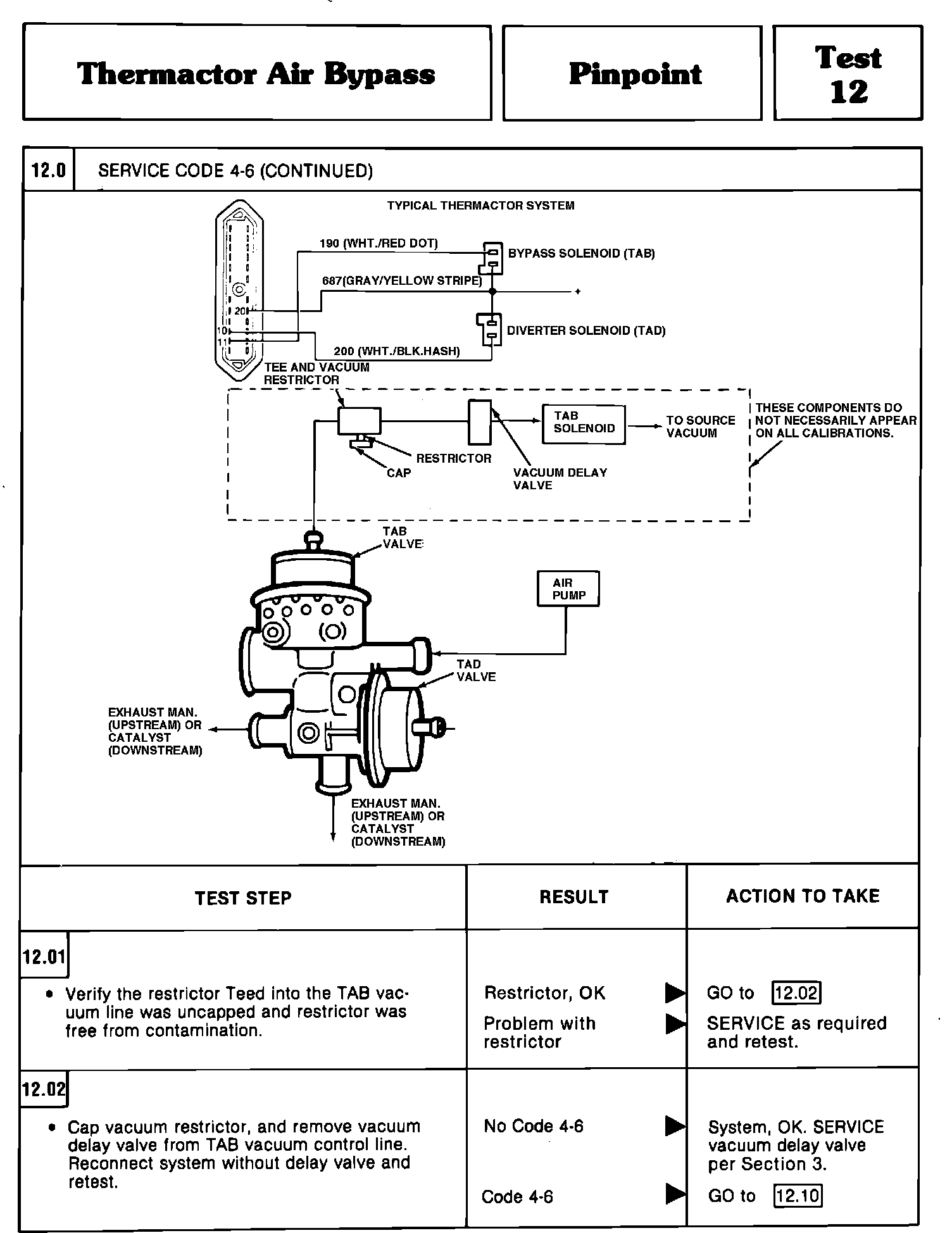

12.0 Thru 12.02 Service Code 4-6 & Wiring Diagram
12.0 Thru 12.02 Service Code 4-6 & Wiring Diagram
