4.0 Thru 4.5 Zoned Vacuum Switch
>>

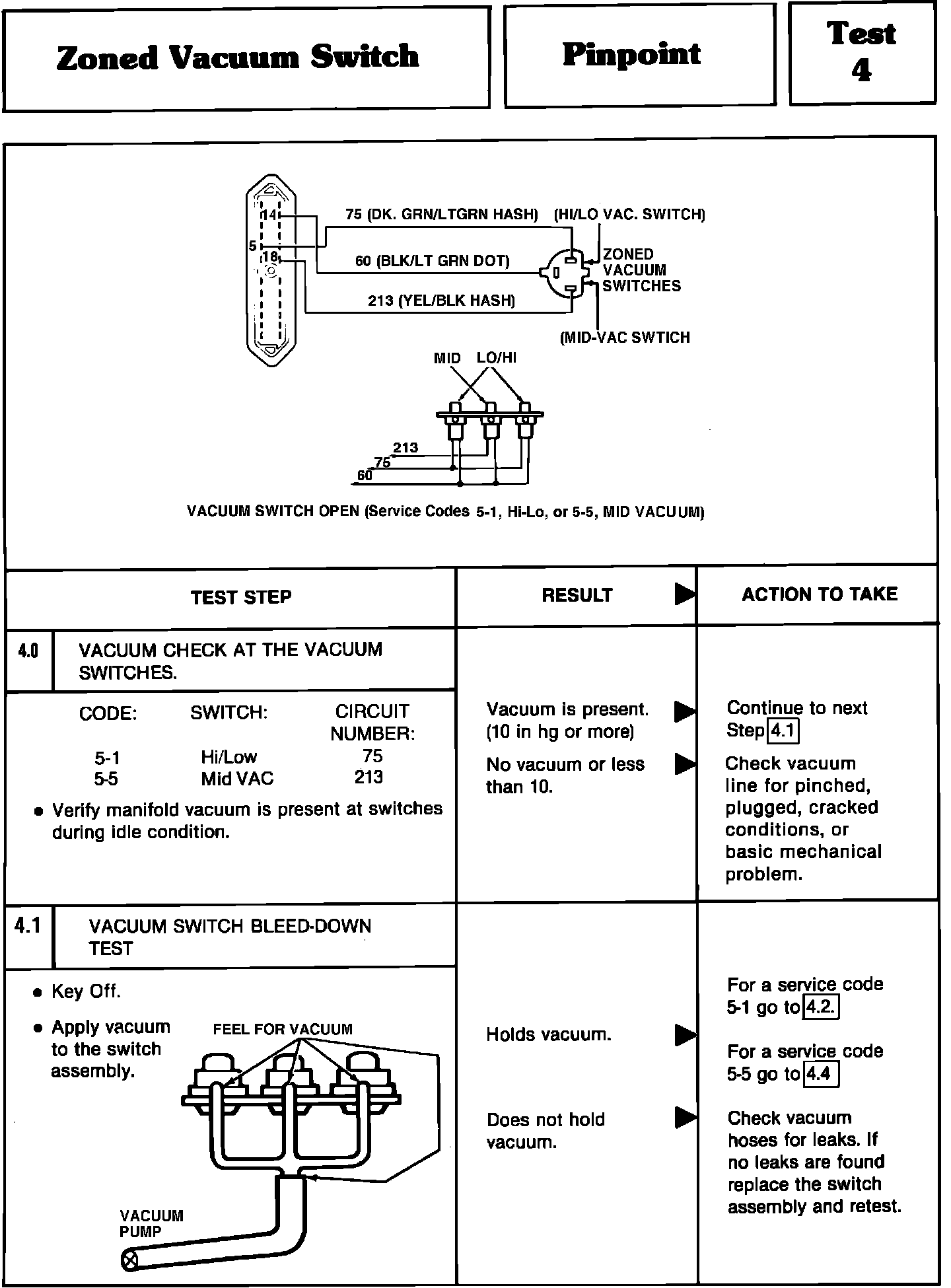

4.0, 4.1 & Wiring Diagram
4.0, 4.1 & Wiring Diagram
Test Step 4.0 Thru 4.1:
