4.0 Thru 4.5 Zoned Vacuum Switch
>>
4.4, 4.5 & Wiring Diagram
4.4, 4.5 & Wiring Diagram

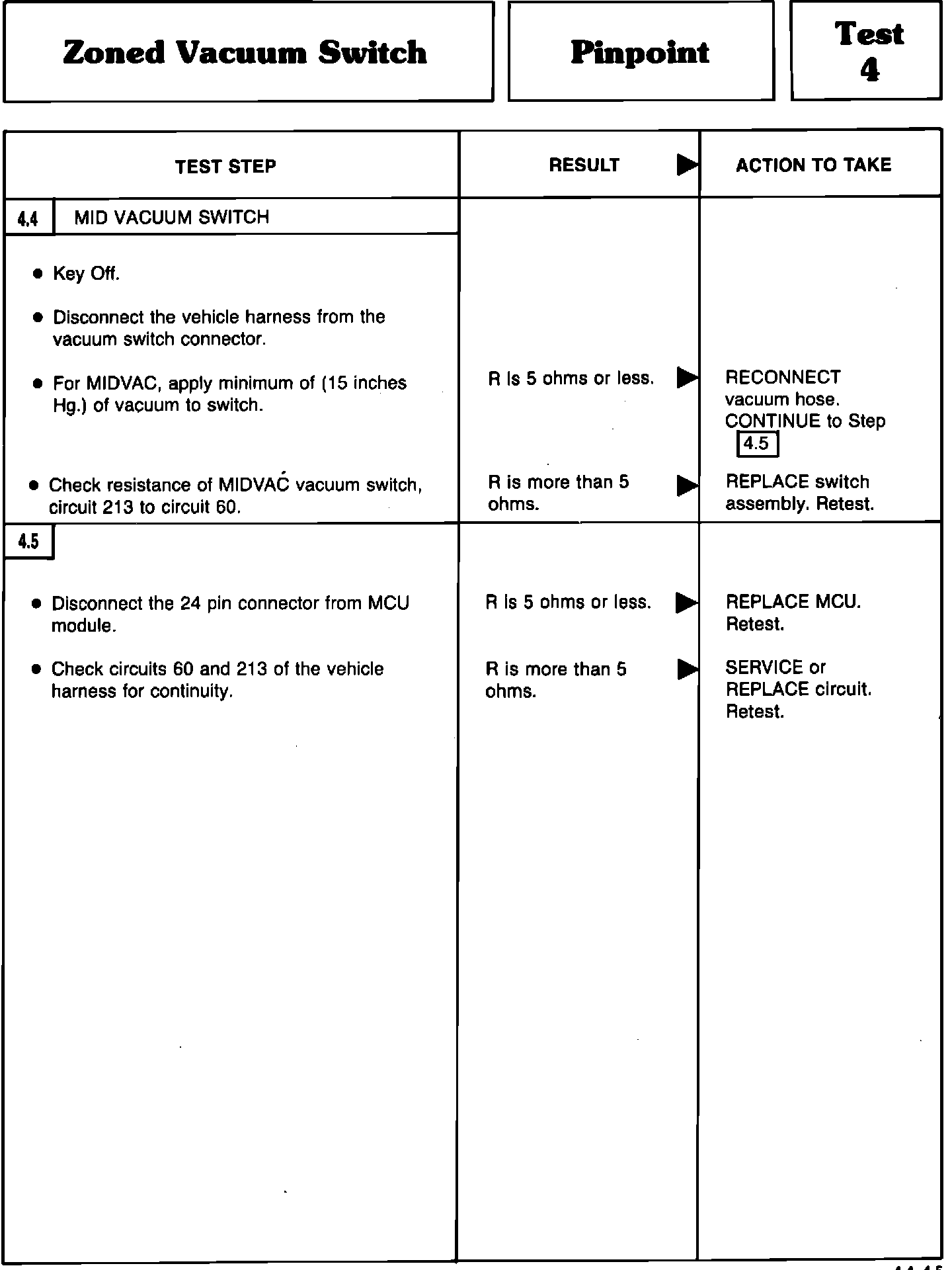

Test Step 4.4 Thru 4.5:
