6.0 Thru 6.17 - Fuel Always Lean
>>

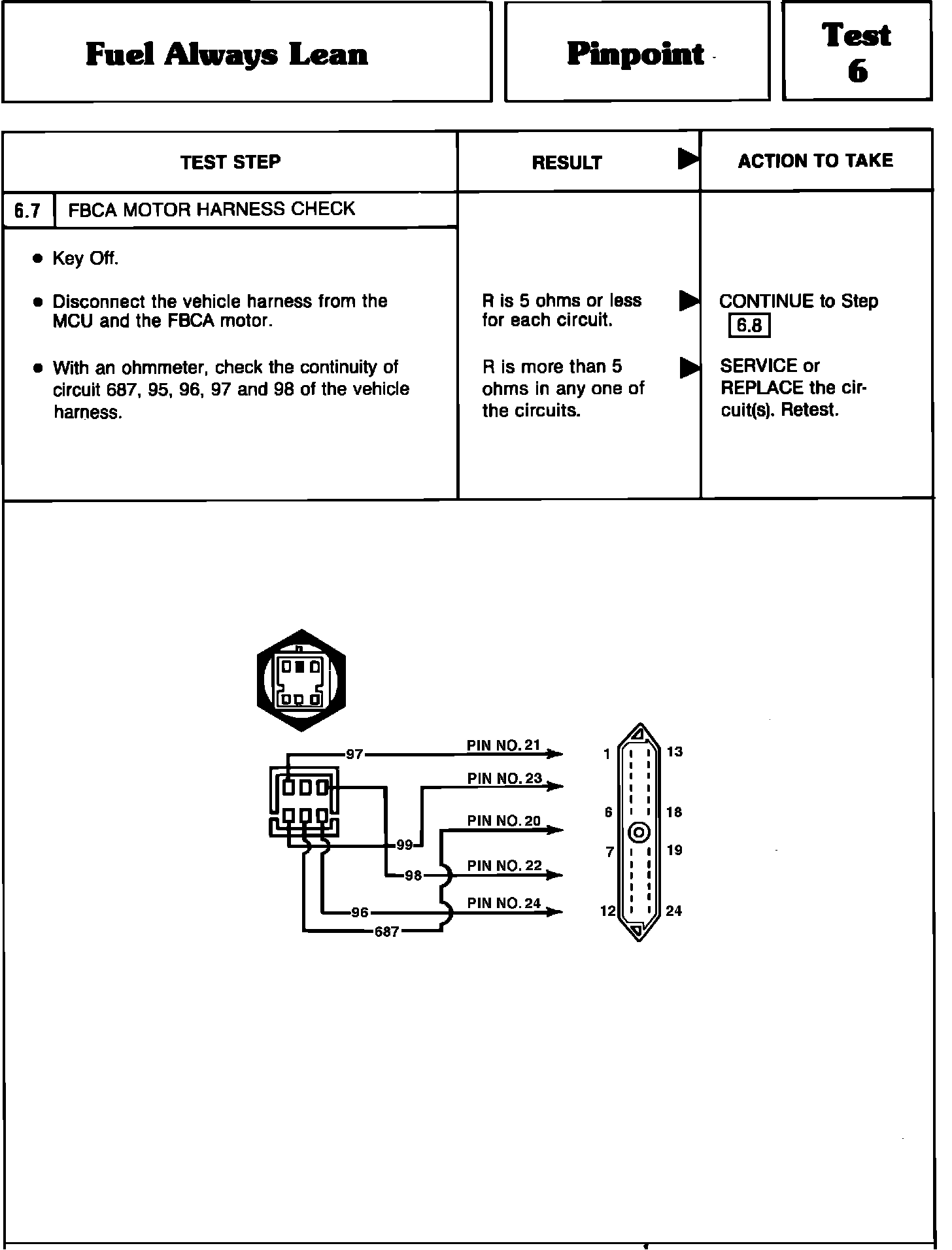

6.7 (FBCA) Wiring Diagram
6.7 (FBCA) Wiring Diagram
Test Step 6.7:
