7.0 Thru 7.8 - Fuel Always Rich
>>

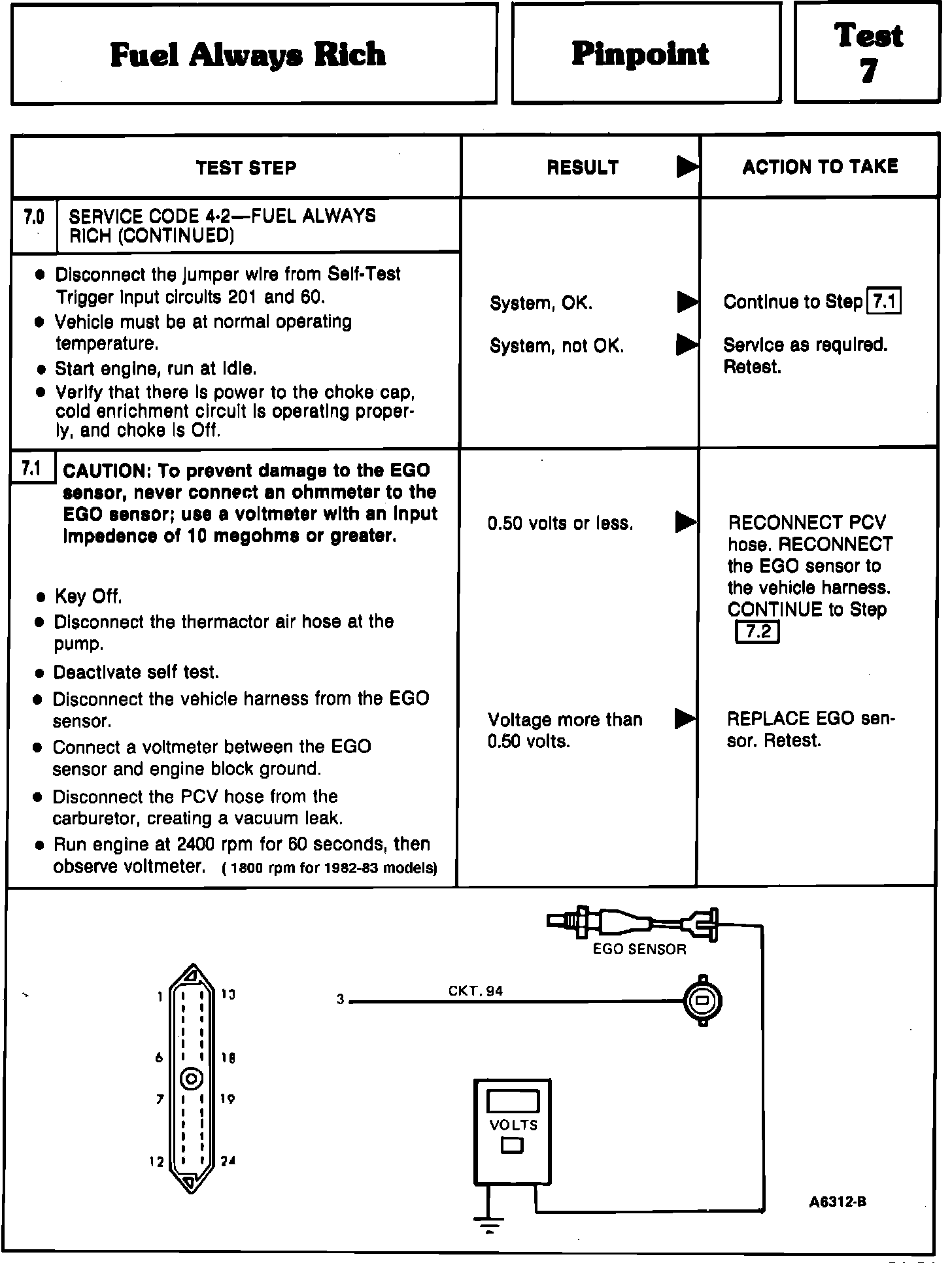

7.0, 7.1, Service Code 4-2, Wiring Diagram
7.0, 7.1, Service Code 4-2, Wiring Diagram
Test Step 7.0 Thru 7.1:
