8.0 Thru 8.7 - RPM Checks
>>

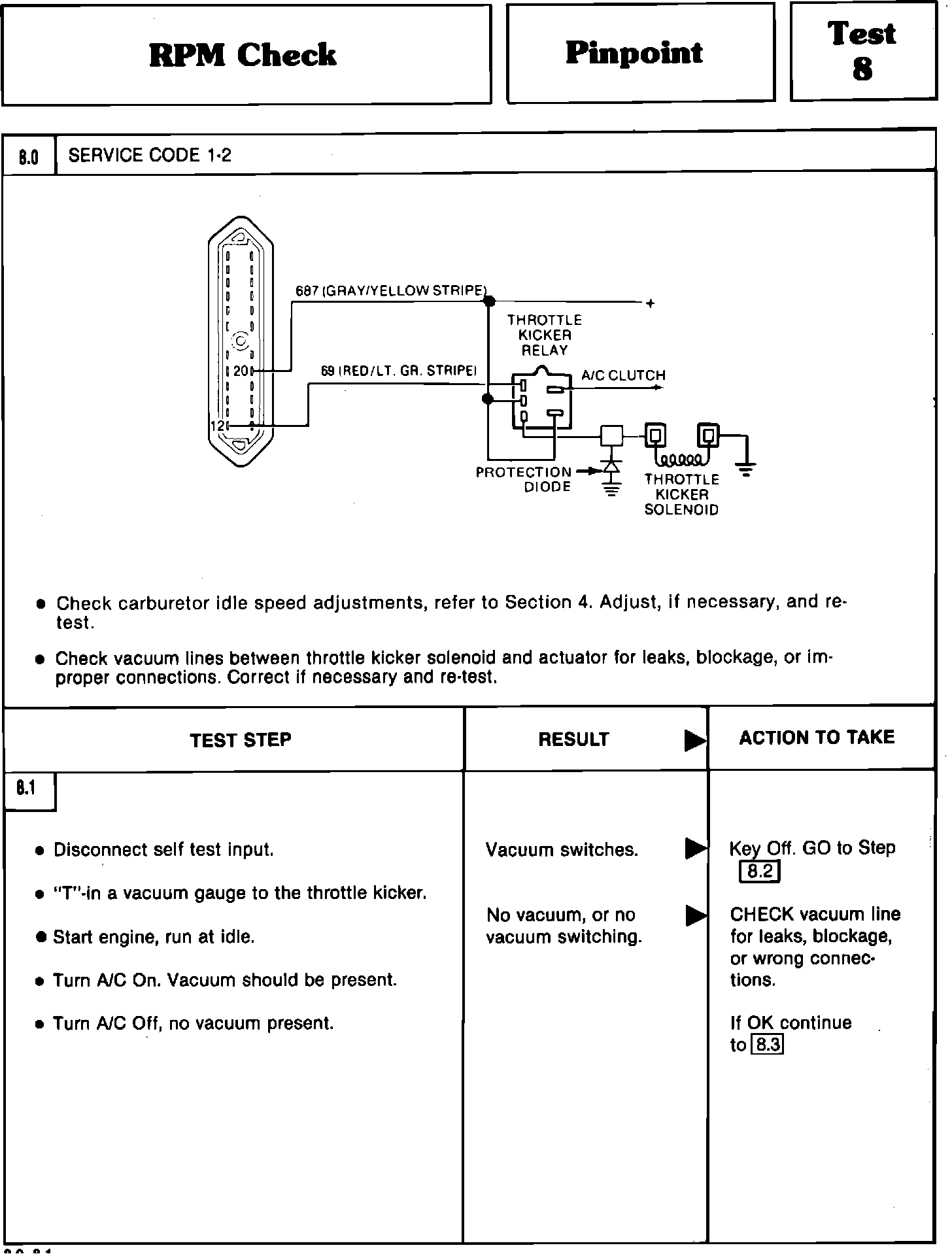

8.0, 8.1, Service Code 1-2 & Wiring Diagram
8.0, 8.1, Service Code 1-2 & Wiring Diagram
Test Step 8.0 Thru 8.1:
