Diesel Data
: Automotive Repair
Home
>>
Ford
>>
1982
>>
Thunderbird V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

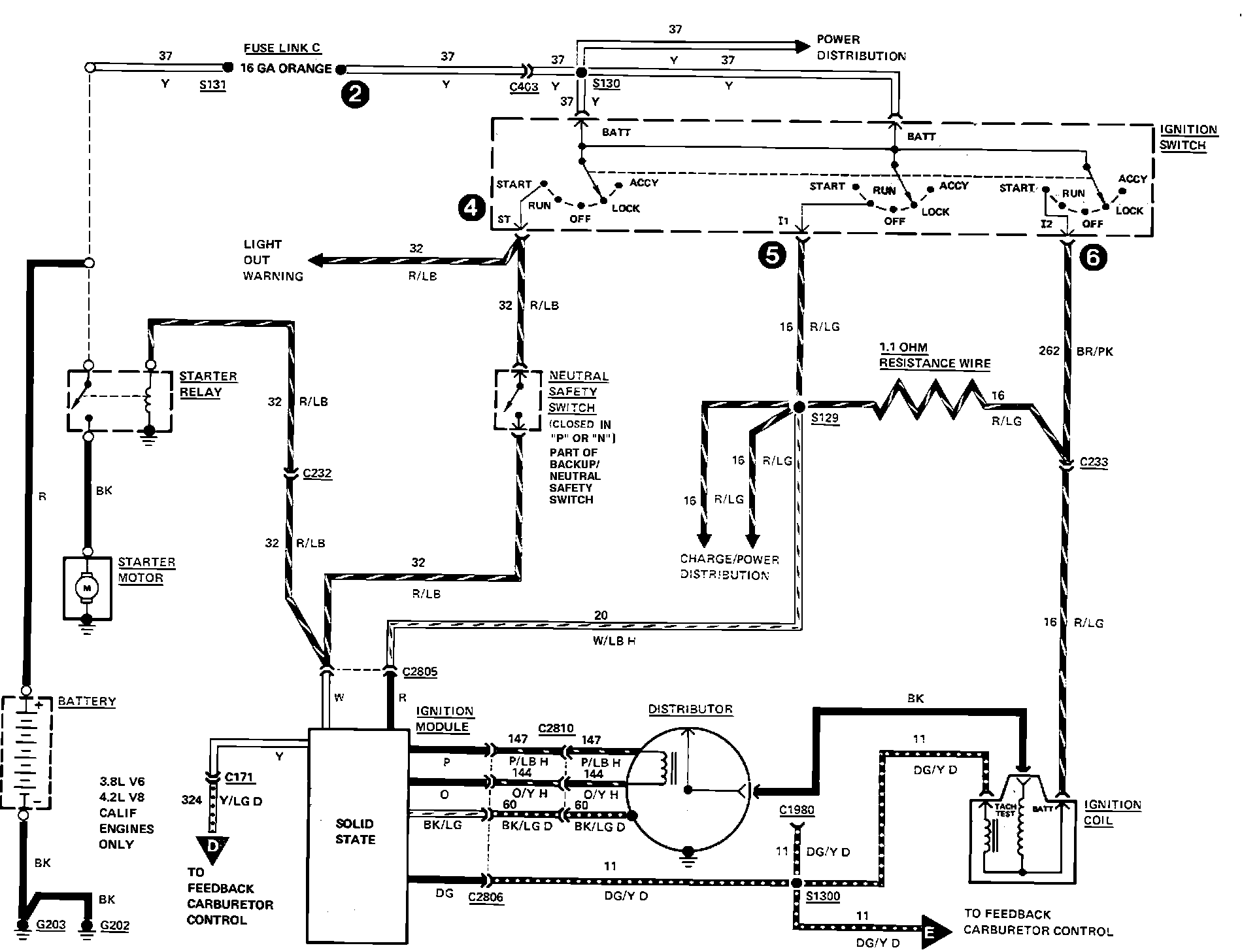

Wiring Diagram - Start/Ignition:
