Diesel Data
: Automotive Repair
Home
>>
Ford
>>
1982
>>
Thunderbird V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
Emission Control Systems
>>

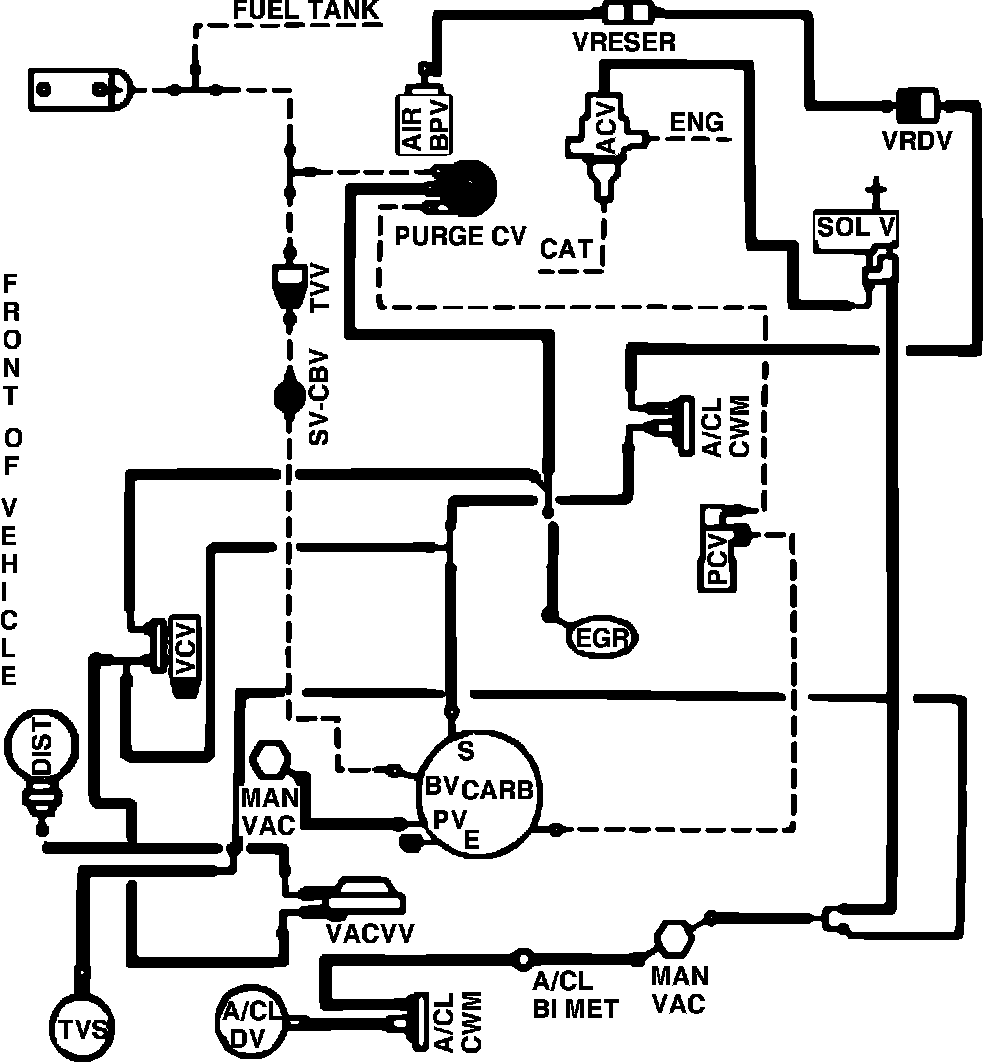

Fig. 50 Calib. Code 2-14C-R0 Federal, Exc. High Alt.
Fig. 50 Calib. Code 2-14C-R0 Federal, Exc. High Alt.
Vacuum hose routing:
