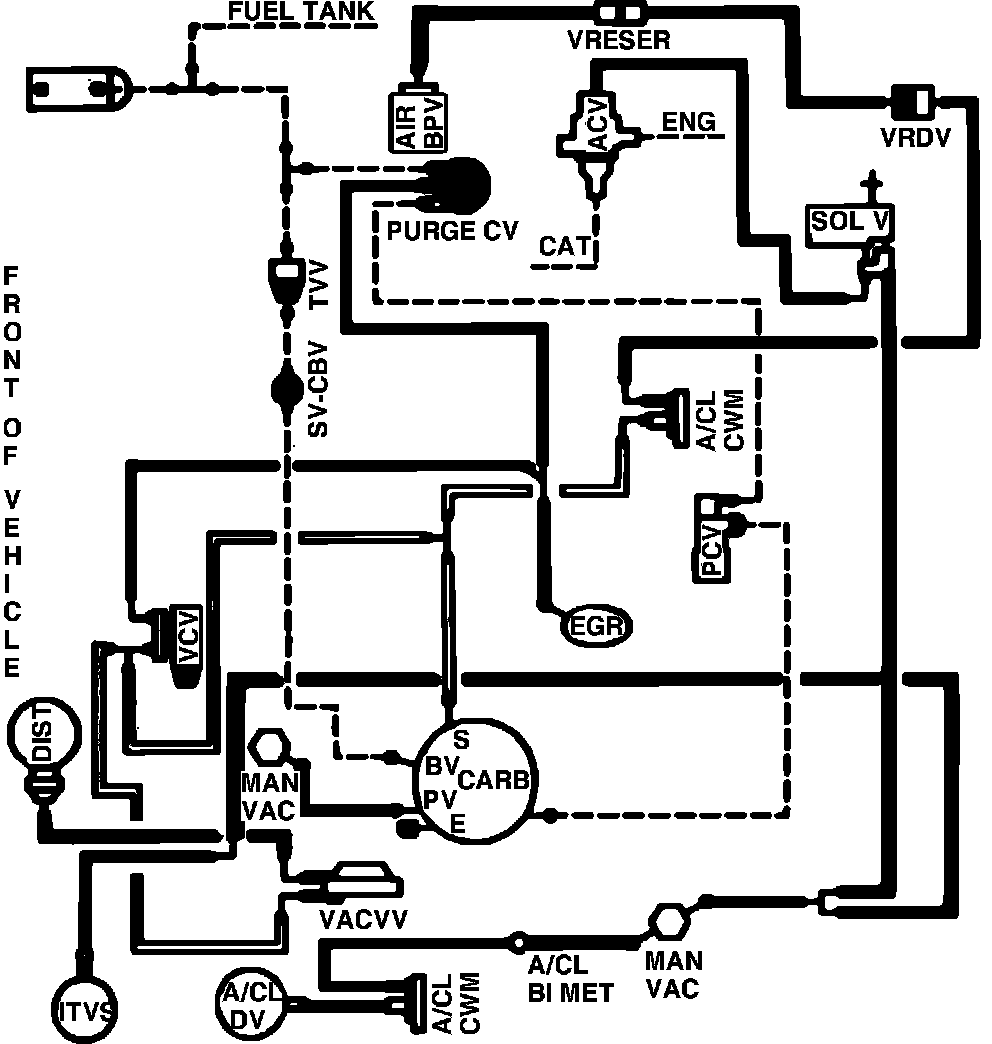

Fig. 52 Calib. Code 2-14C-R13 Federal, Exc. High Alt.
Fig. 52 Calib. Code 2-14C-R13 Federal, Exc. High Alt.
Vacuum hose routing:
