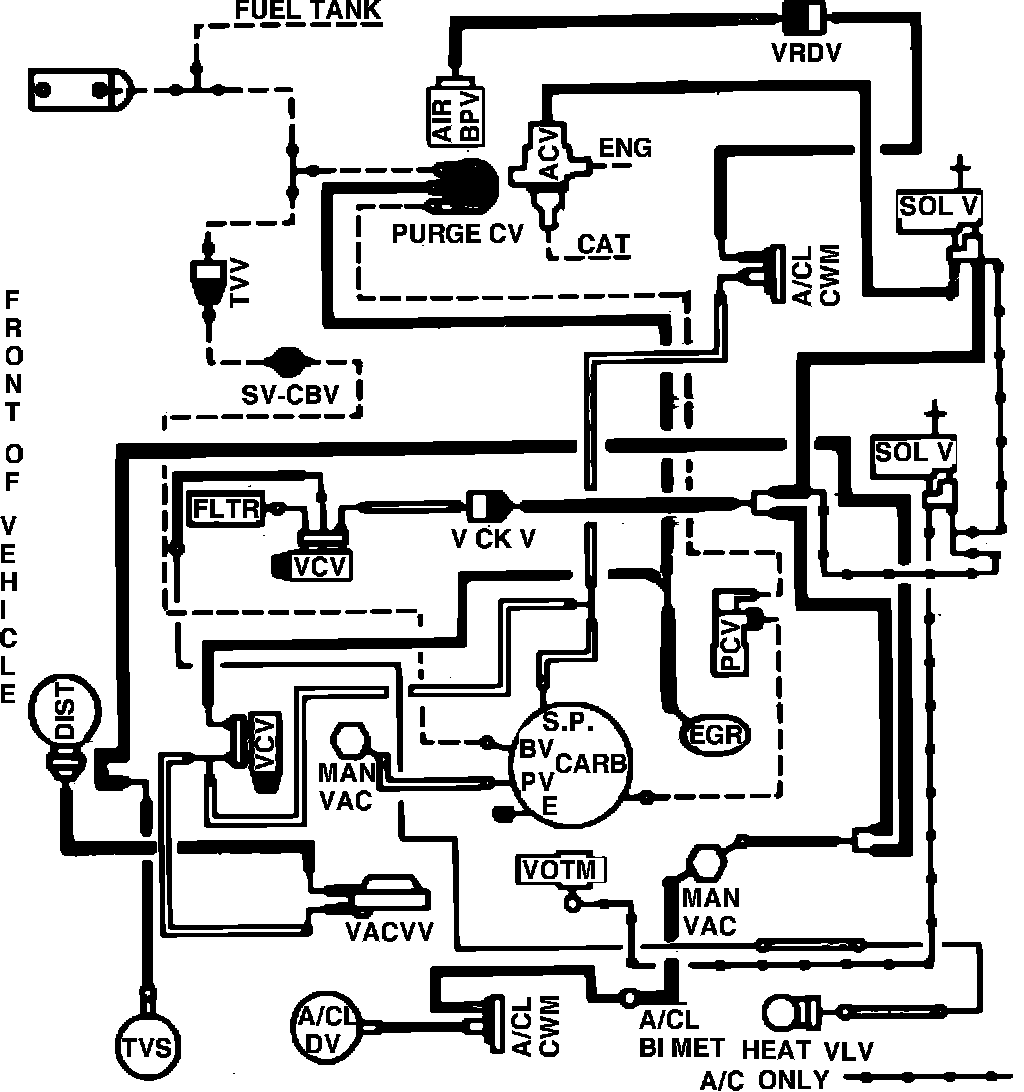

Fig. 54 Calib. Code 2-14E-R0 Federal, Exc. High Alt.
Fig. 54 Calib. Code 2-14E-R0 Federal, Exc. High Alt.
Vacuum hose routing:
