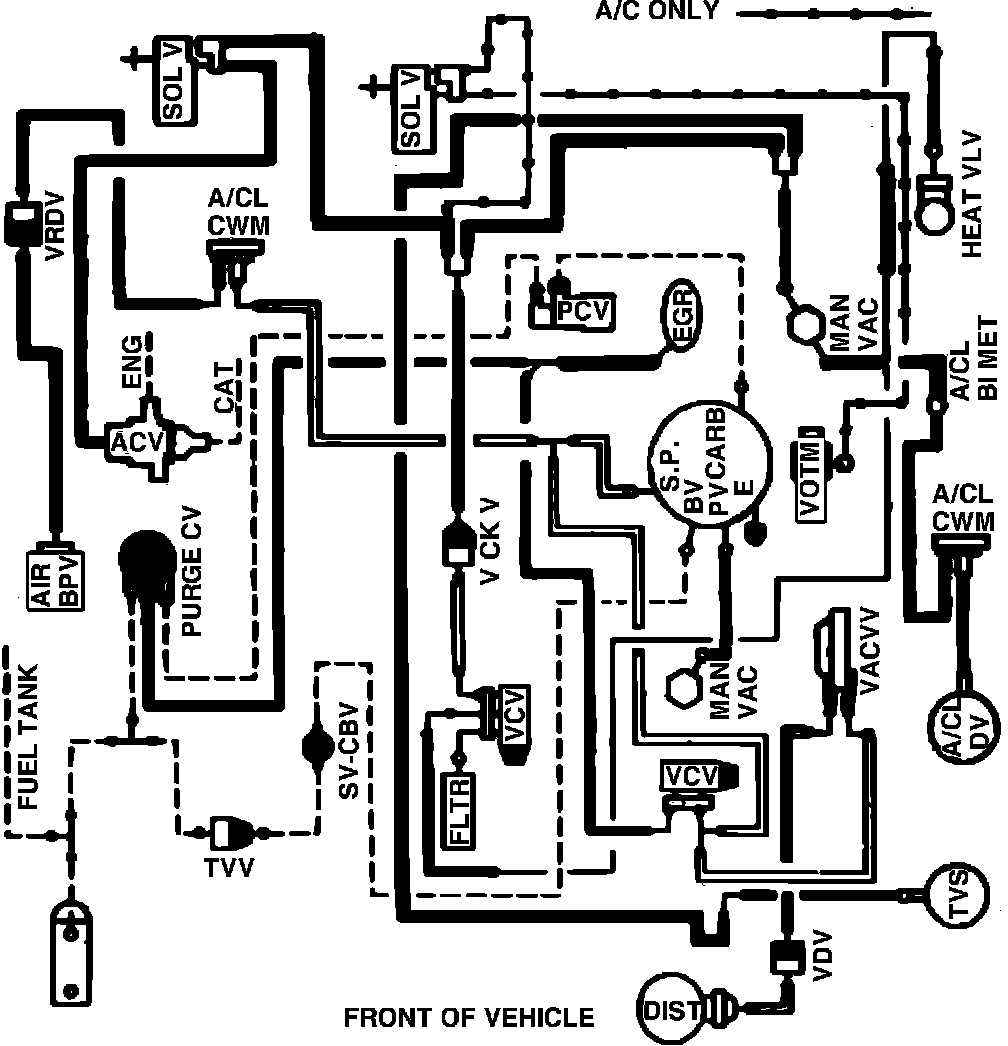

Fig. 55 Calib. Code 2-14E-R10 Federal, Exc. High Alt.
Fig. 55 Calib. Code 2-14E-R10 Federal, Exc. High Alt.
Vacuum hose routing:
