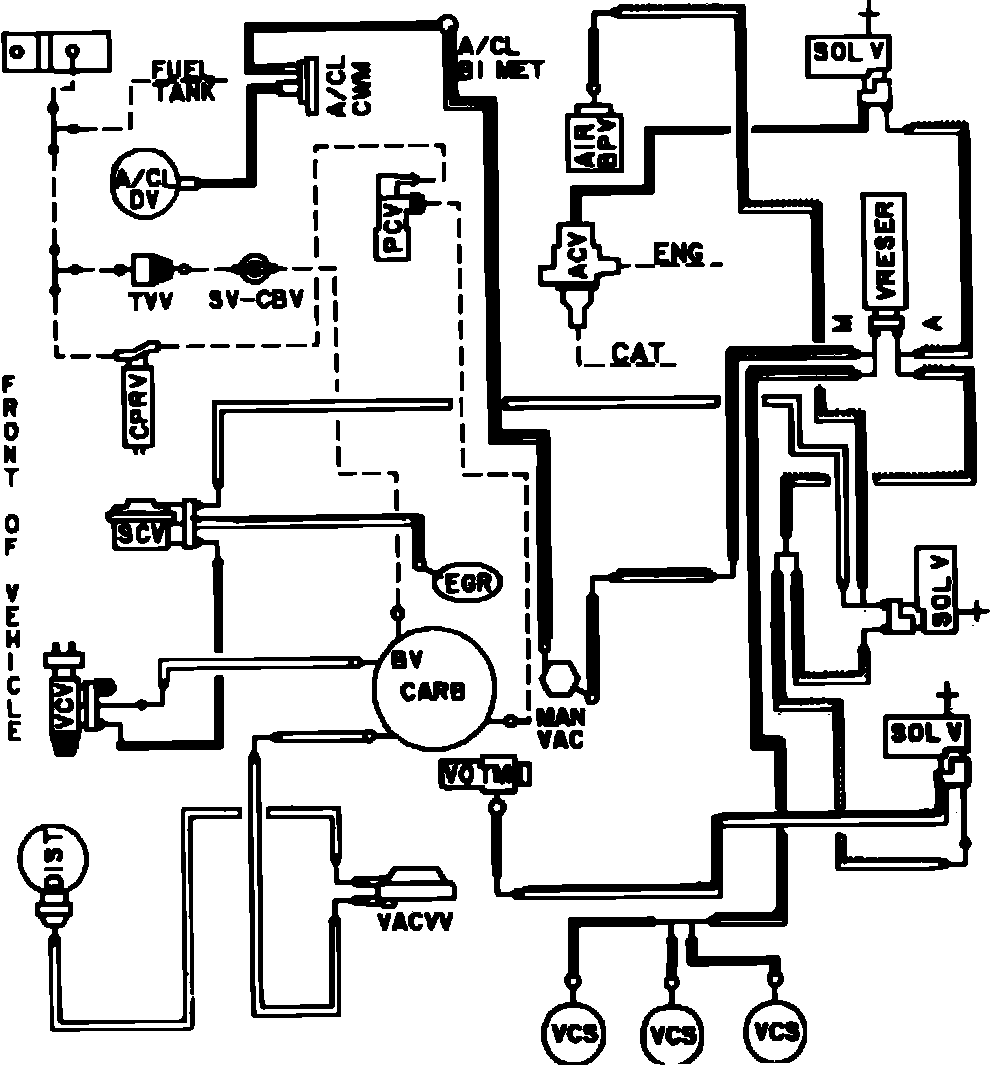

Fig. 57 Calib. Codes 2-14Q-R01 & 2-14Q-R11 Calif.
Fig. 57 Calib. Codes 2-14Q-R01 & 2-14Q-R11 Calif.
Vacuum hose routing:
