Ford
>>
1982
>>
Thunderbird V8-255 4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>

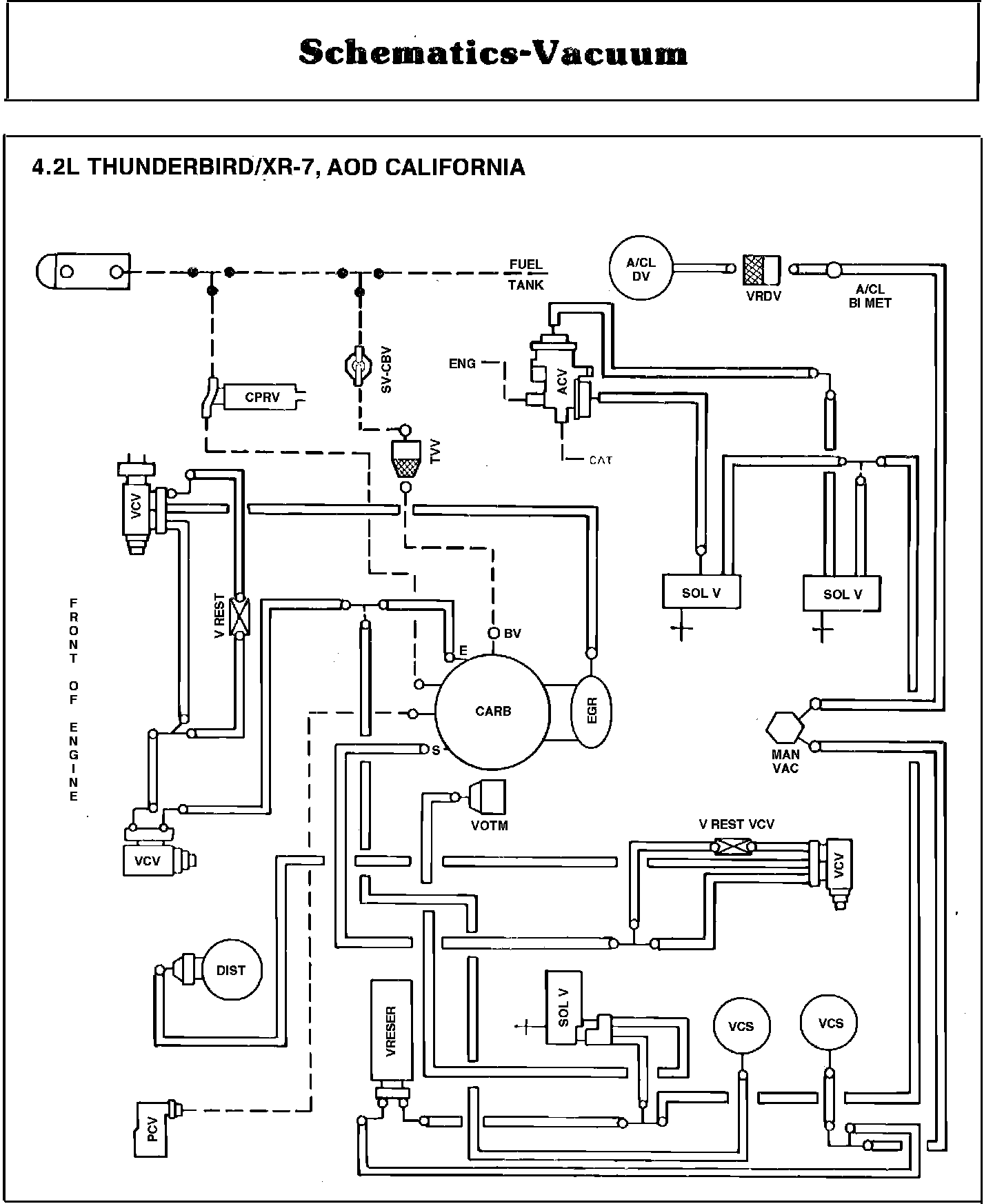

Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
System Diagram
System Diagram
