Ford
>>
1982
>>
Thunderbird V8-255 4.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

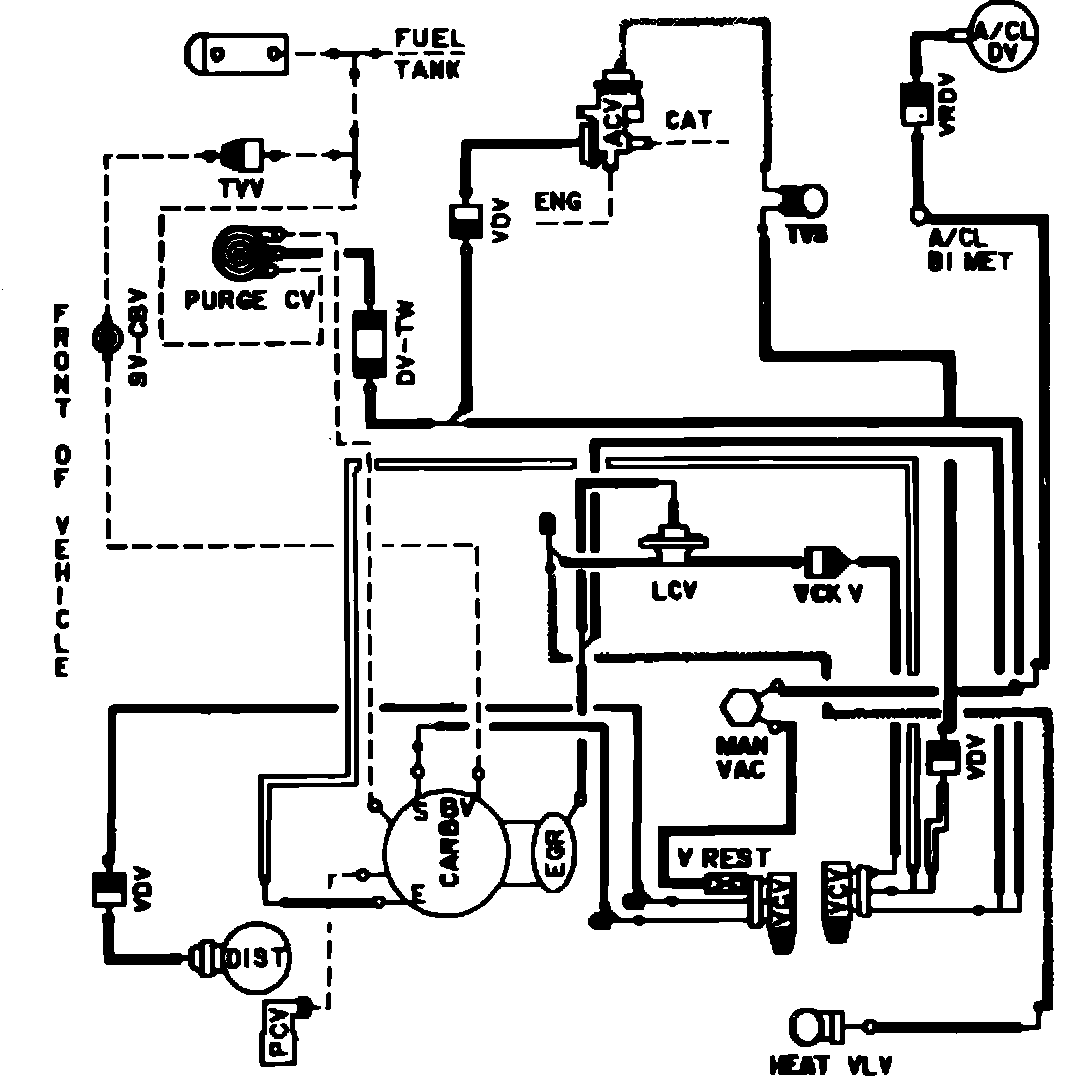

Fig. 68 Calib. Code 2-18X-R0 High Alt.
Fig. 68 Calib. Code 2-18X-R0 High Alt.
Vacuum hose routing:
