Front Bumper Cover / Fascia: Service and Repair

FRONT BUMPER COVER

Removal and Installation

All vehicles
1. Raise and support the vehicle.

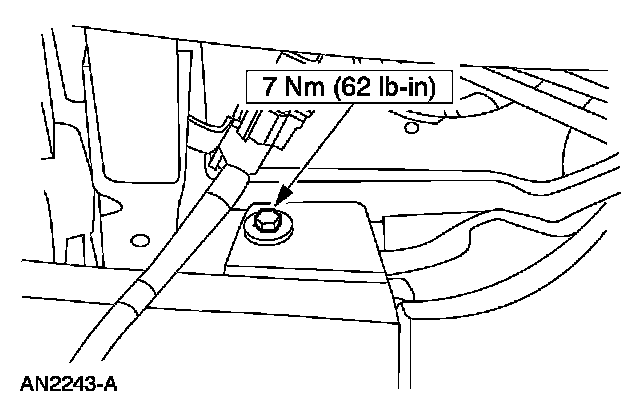

2. NOTE: RH shown, LH similar.

Remove the 6 lower radiator air deflector bolts, the 2 front bumper cover bolts, and the 2 pin-type retainers.

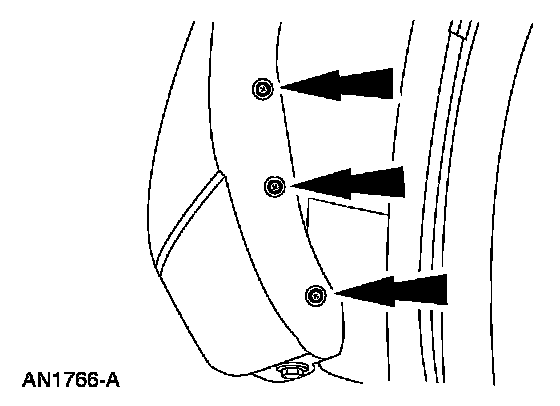

3. Remove the 6 pin-type retainers (3 each side).

Marauder







4. Disconnect the 2 fog lamp electrical connectors.

All vehicles
5. Lower the vehicle.
6. Remove the headlamp assemblies.

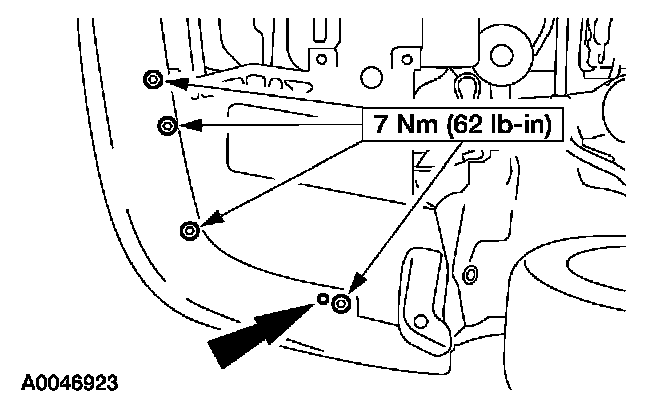

7. Remove the 2 front bumper cover screws (one each side).

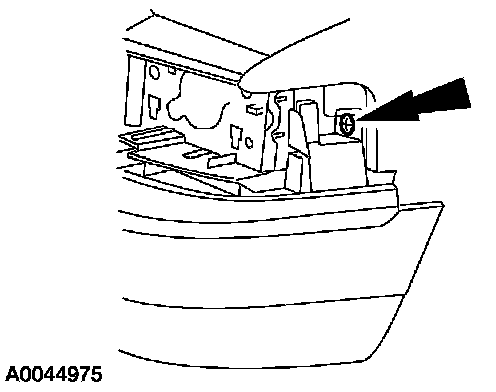

8. Remove the 2 front bumper cover screws (one each side, under the front bumper).
9. Release the 4 tabs and remove the front bumper cover.
10. To install, reverse the removal procedure.
- Transfer any components as necessary.
