Test C

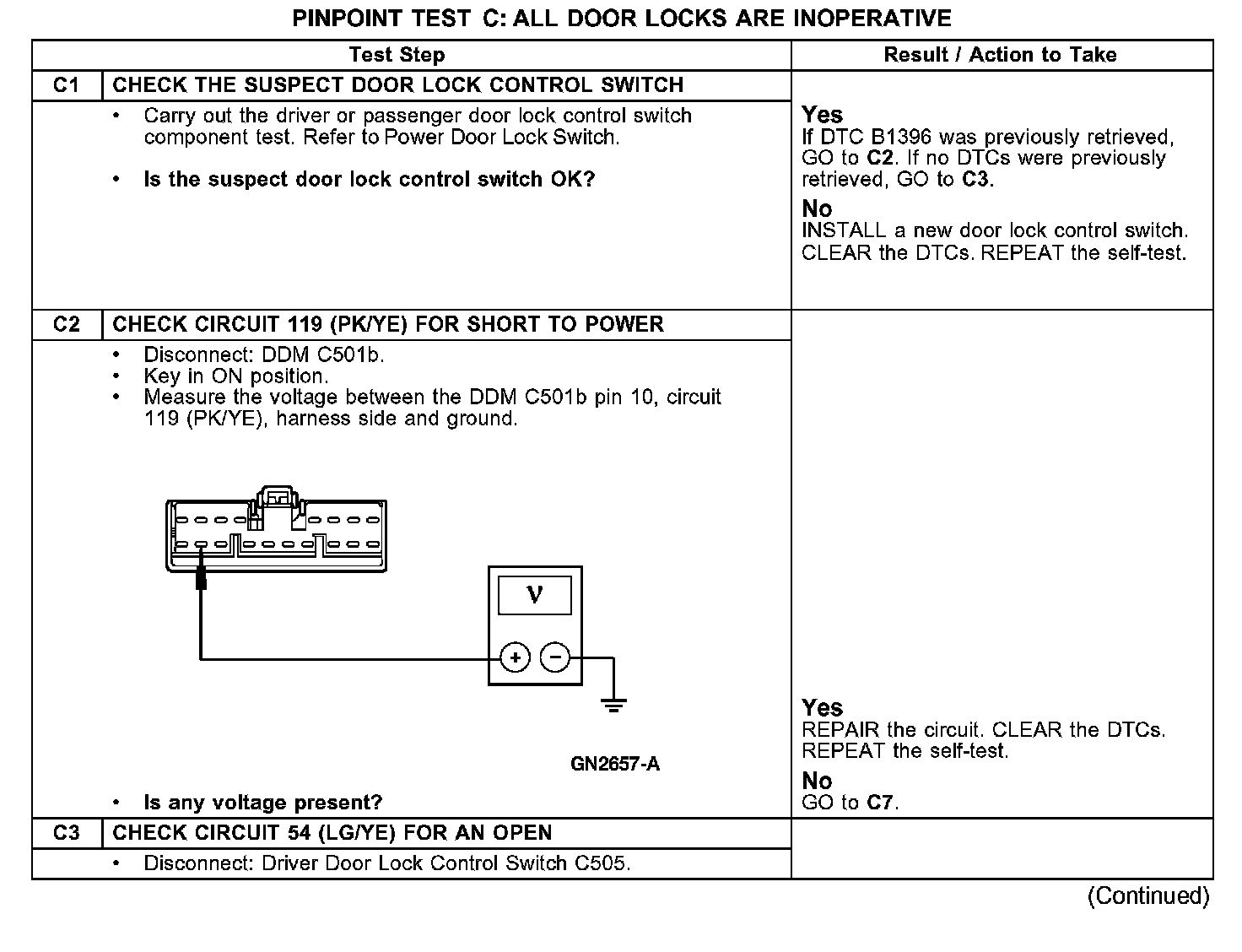

PINPOINT TEST C: ALL DOOR LOCKS ARE INOPERATIVE


Test C1-C3:






Test C3-C5:






Test C6-C7:
