Power Seat Motor: Service and Repair
LUMBAR MOTORSpecial Tool(s):
SPECIAL TOOL(S)
REMOVAL
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
NOTE: Driver side shown, passenger side similar.
All vehicles
1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The side impact sensors are located at or near the base of the B-pillars.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
Vehicles with seat side air bags
2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
Deactivate the supplemental restraint system (SRS).
All vehicles
3. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the front seat removal and installation procedure.
Remove the affected seat.
4. Remove the front seat backrest.
5. Disassemble the front seat backrest.
6. NOTE: The lumbar motor, bladder, hose and backing board are serviced as an assembly.

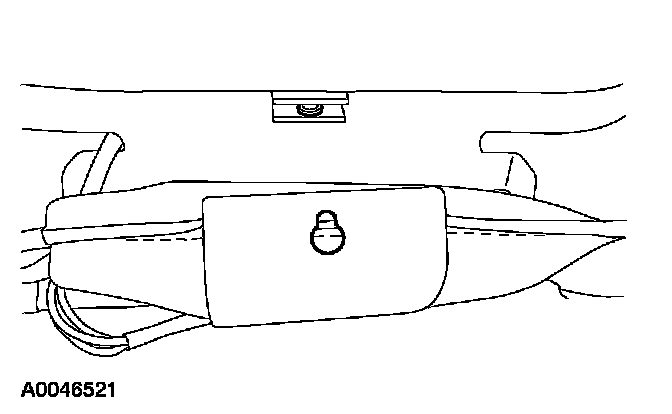

Detach the lumbar motor bracket clip.

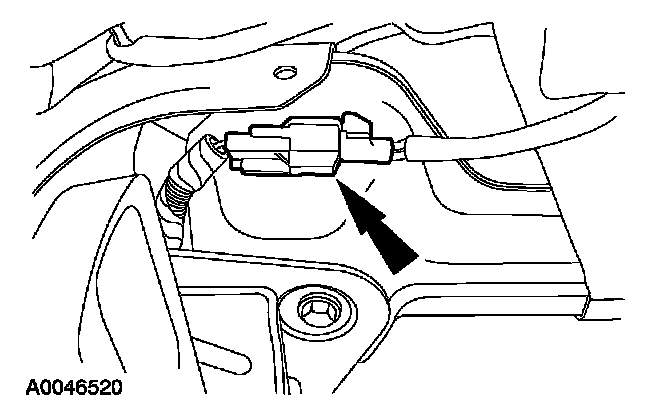

7. Disconnect the electrical connector.

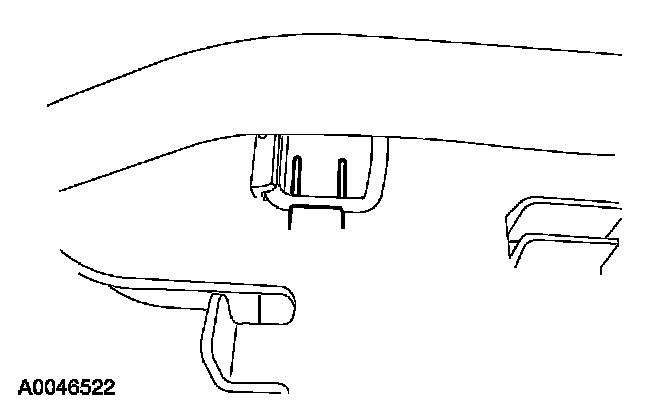

8. Detach the two lumbar support bracket clips (one shown) and slide the lumbar assembly up and off.
INSTALLATION
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
All vehicles

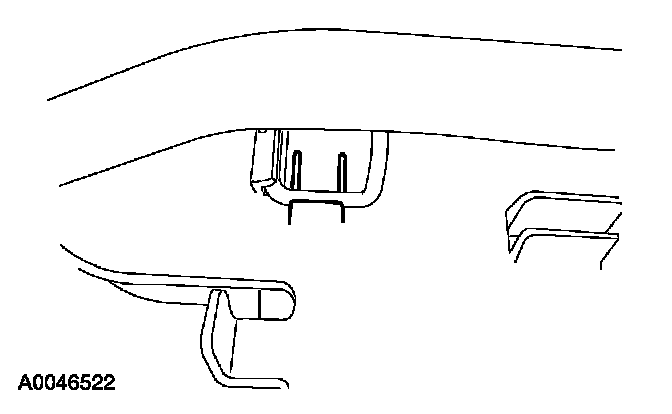

1. Slide the lumbar support bracket and lumbar assembly on lumbar seat frame until seated on the two clips.
2. Connect the electrical connector.

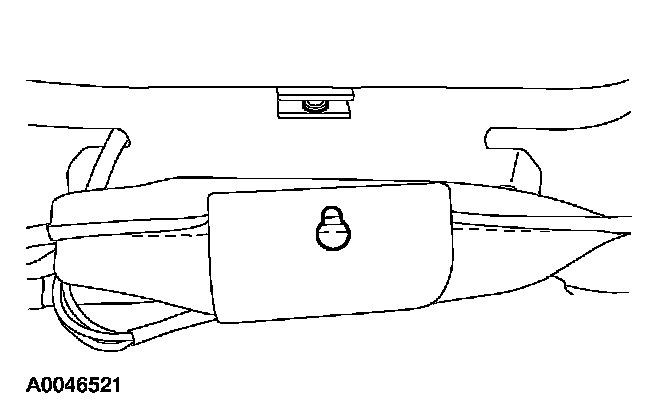

3. Install the lumbar motor and attach the lumbar motor bracket clip.
4. Assemble the front seat backrest.
5. Install the front seat backrest.
6. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
Install the affected seat.
Vehicles with seat side air bags
7. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
Reactivate the supplemental restraint system (SRS).
All vehicles
8. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).
