Disassembly and Assembly

INSTRUMENT PANEL AIR DISTRIBUTION DUCTS

DISASSEMBLY
1. Remove the instrument panel. For additional information, refer to: Dashboard/Instrument Panel. Service and Repair

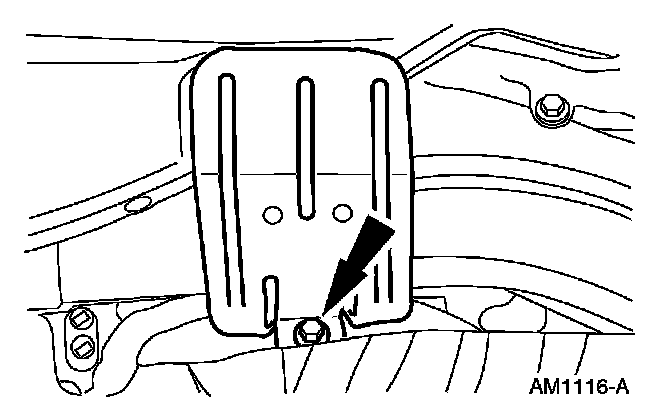

2. Remove the screw and remove the bracket.

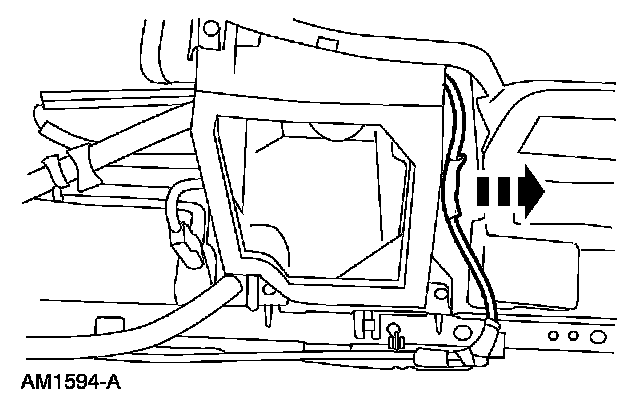

3. Disengage the in-car temperature sensor hose retainers.

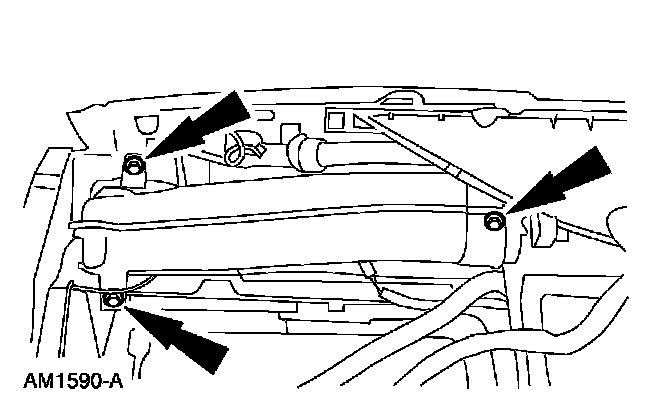

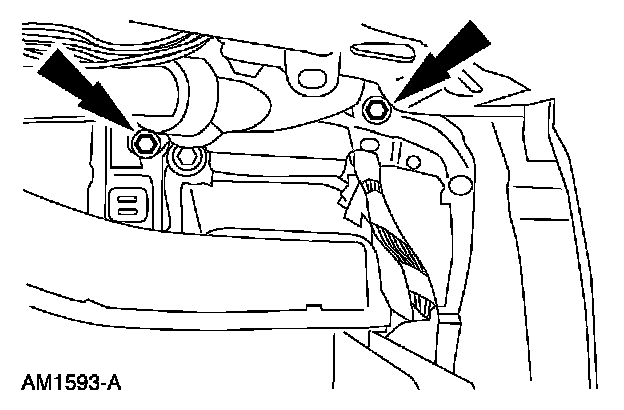

4. Remove the screws.

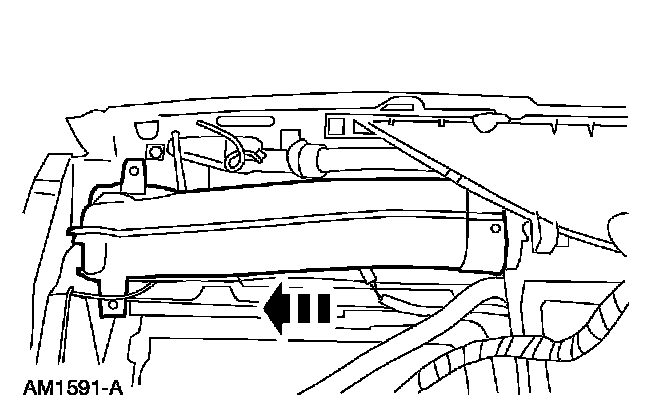

5. Remove the RH panel duct.

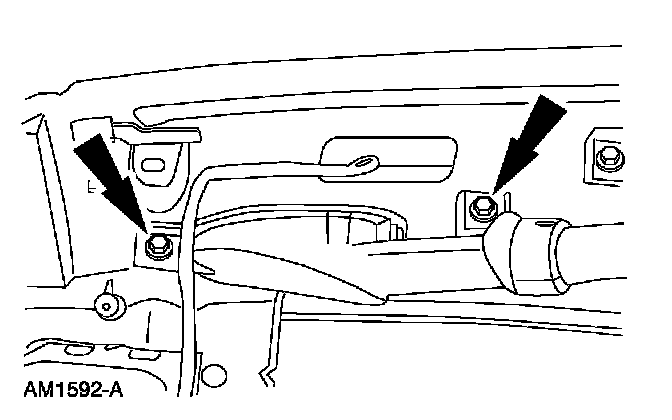

6. Remove the screws and the RH demister nozzle.







7. Remove the screws and the LH demister nozzle.

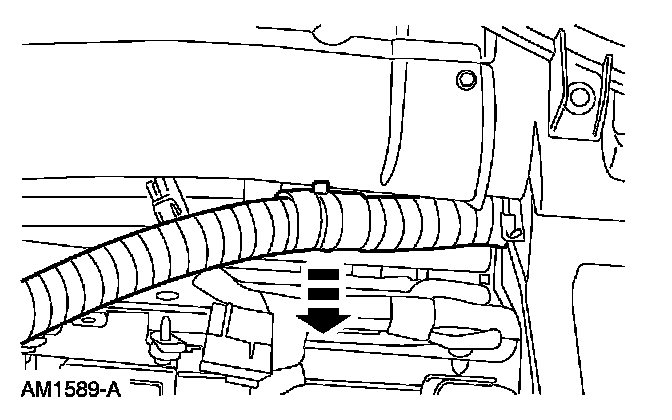

8. Disengage the radio antenna.

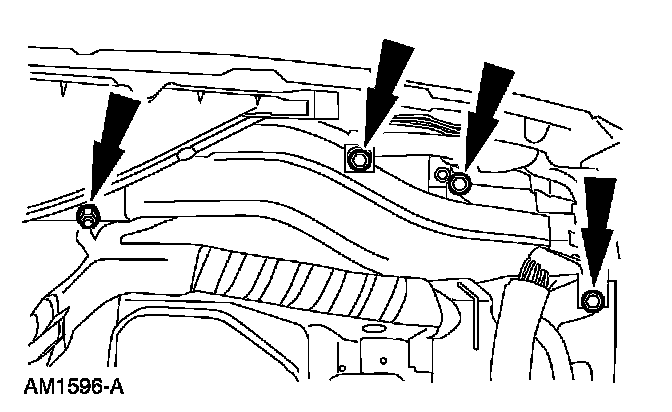

9. Remove the screws retaining the LH panel duct to the defroster duct, but do not remove the duct.

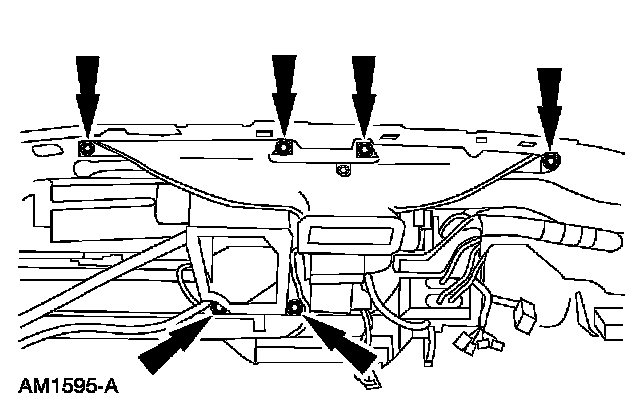

10. Remove the screws and remove the air distribution assembly.
11. Remove the LH panel duct.


ASSEMBLY
1. To assemble, reverse the disassembly procedure.
