Evaporator Temperature Sensor / Switch: Testing and Inspection

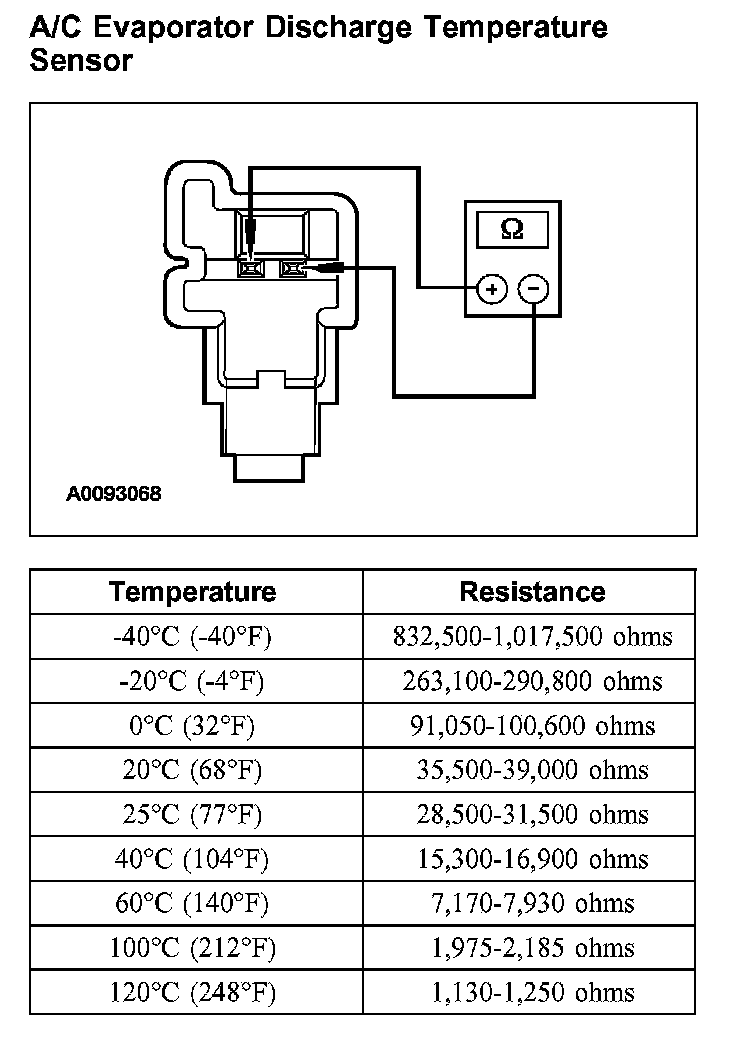

A/C Evaporator Discharge Temperature Sensor:
