Pinpoint Tests - Natural Gas - Instrument Cluster
>>
Test E
Test E

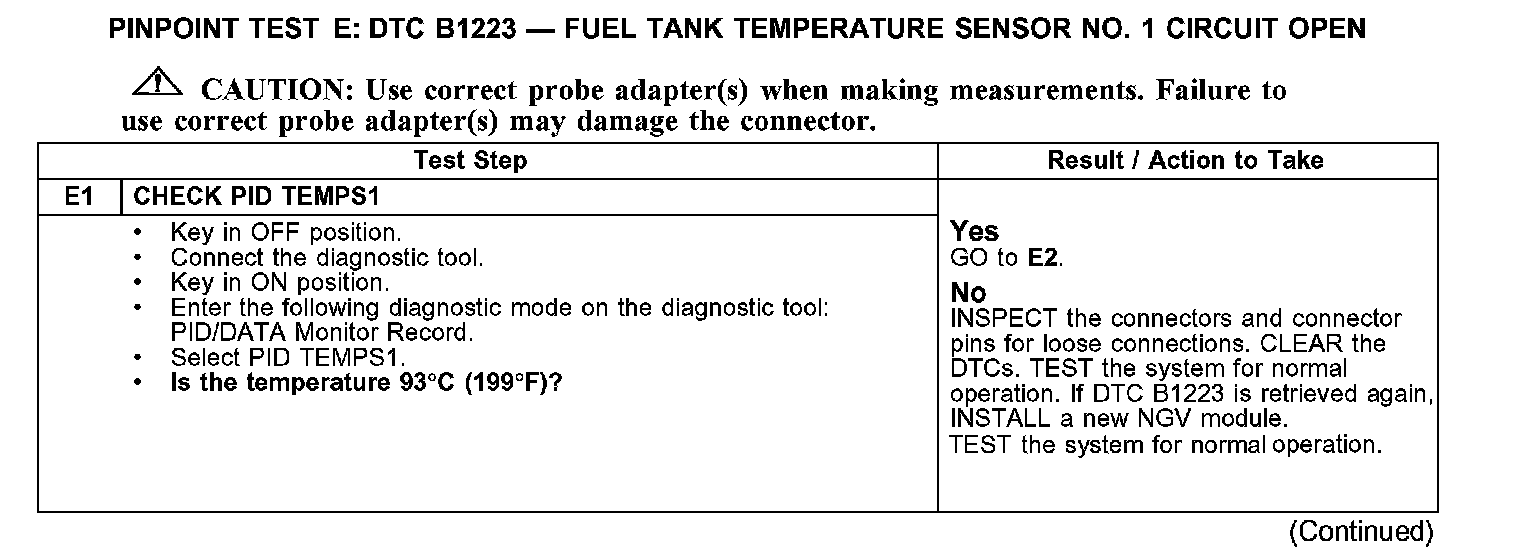

PINPOINT TEST E: DTC B1223 - FUEL TANK TEMPERATURE SENSOR NO.1 CIRCUIT OPEN
Test E1:
Test E2-E3:
