PINPOINT TEST O: THE INSTRUMENT CLUSTER IS INOPERATIVE/ERRATIC
Test O1-O2:

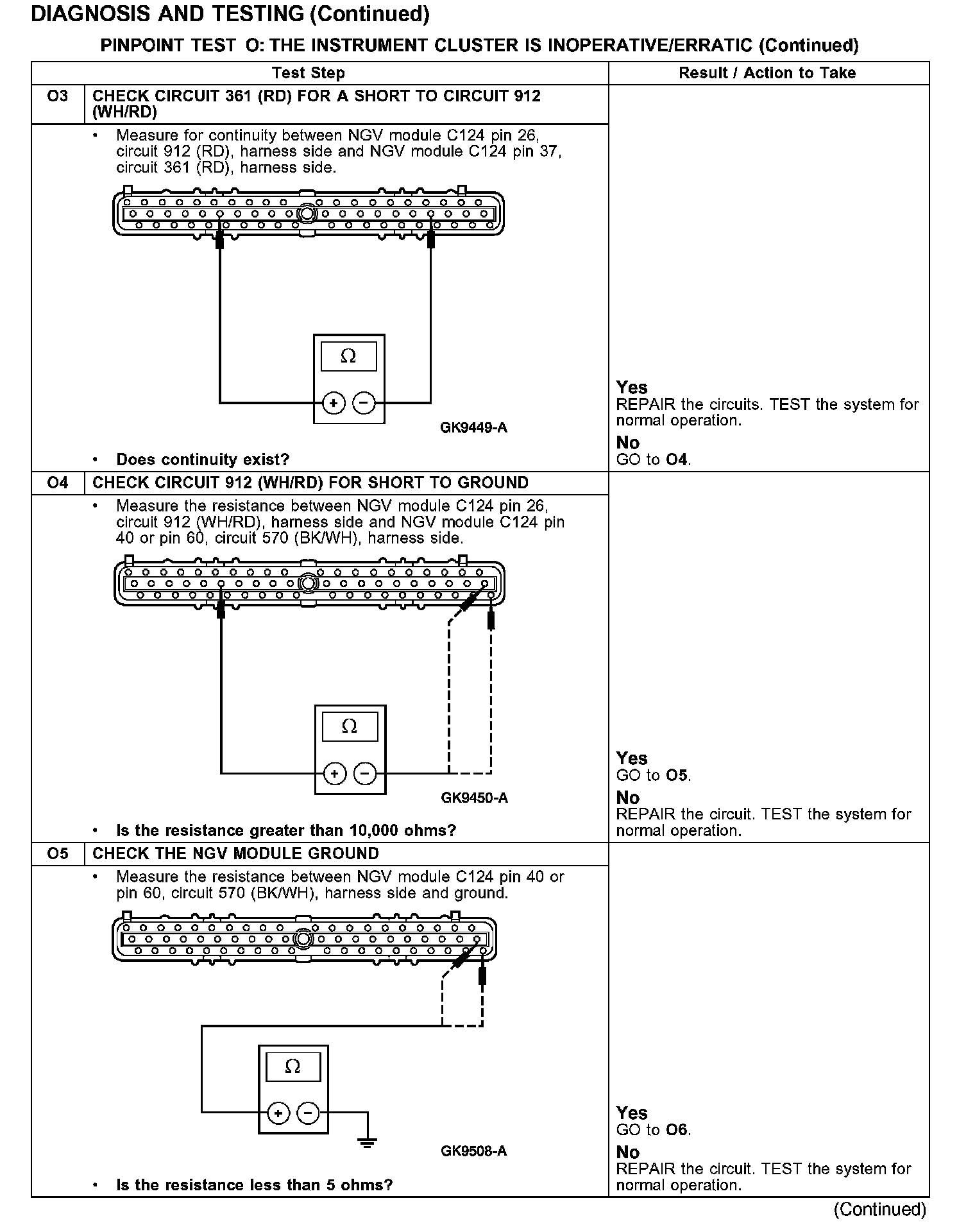

Test O3-O5:

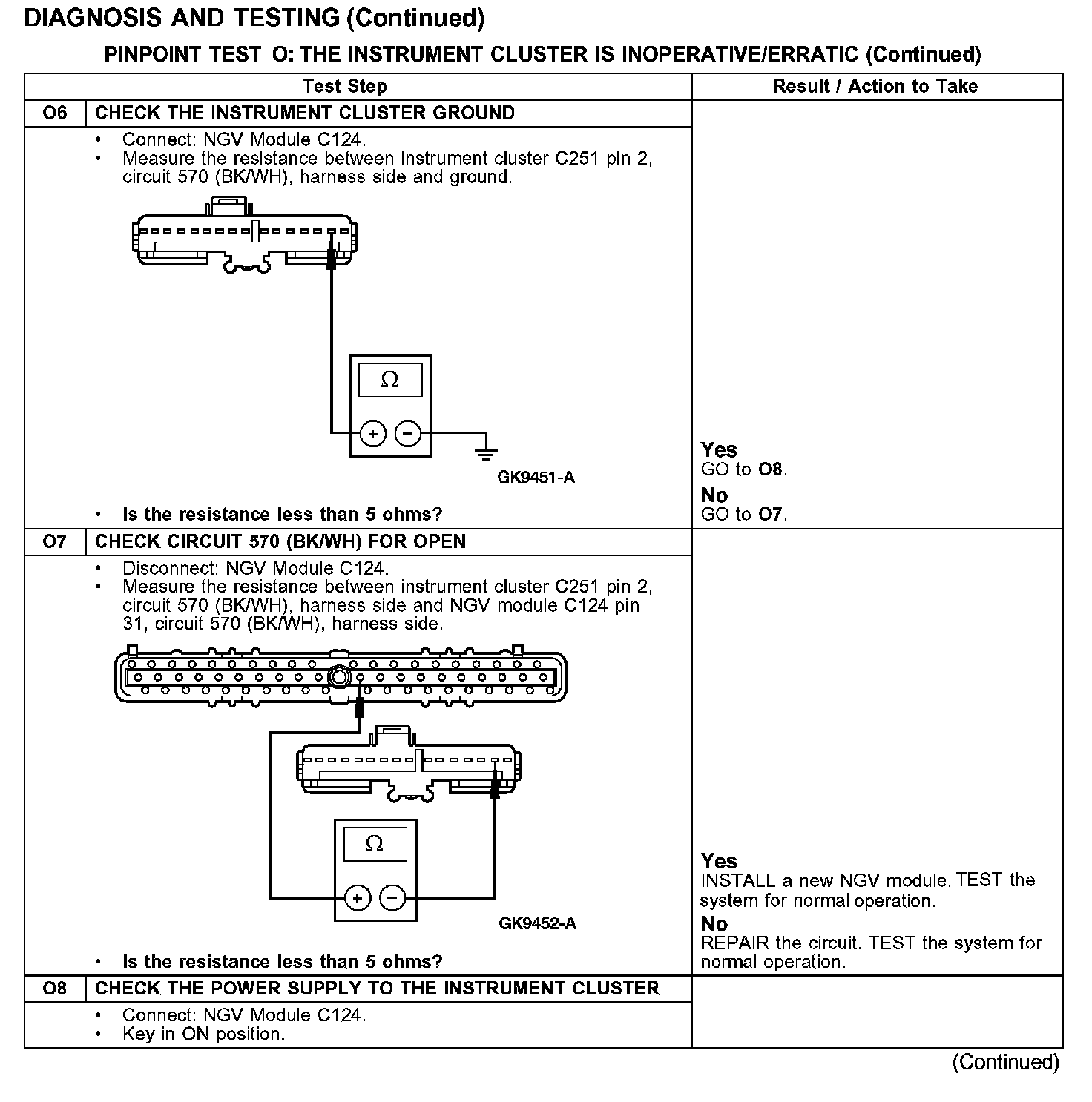

Test O6-O8:

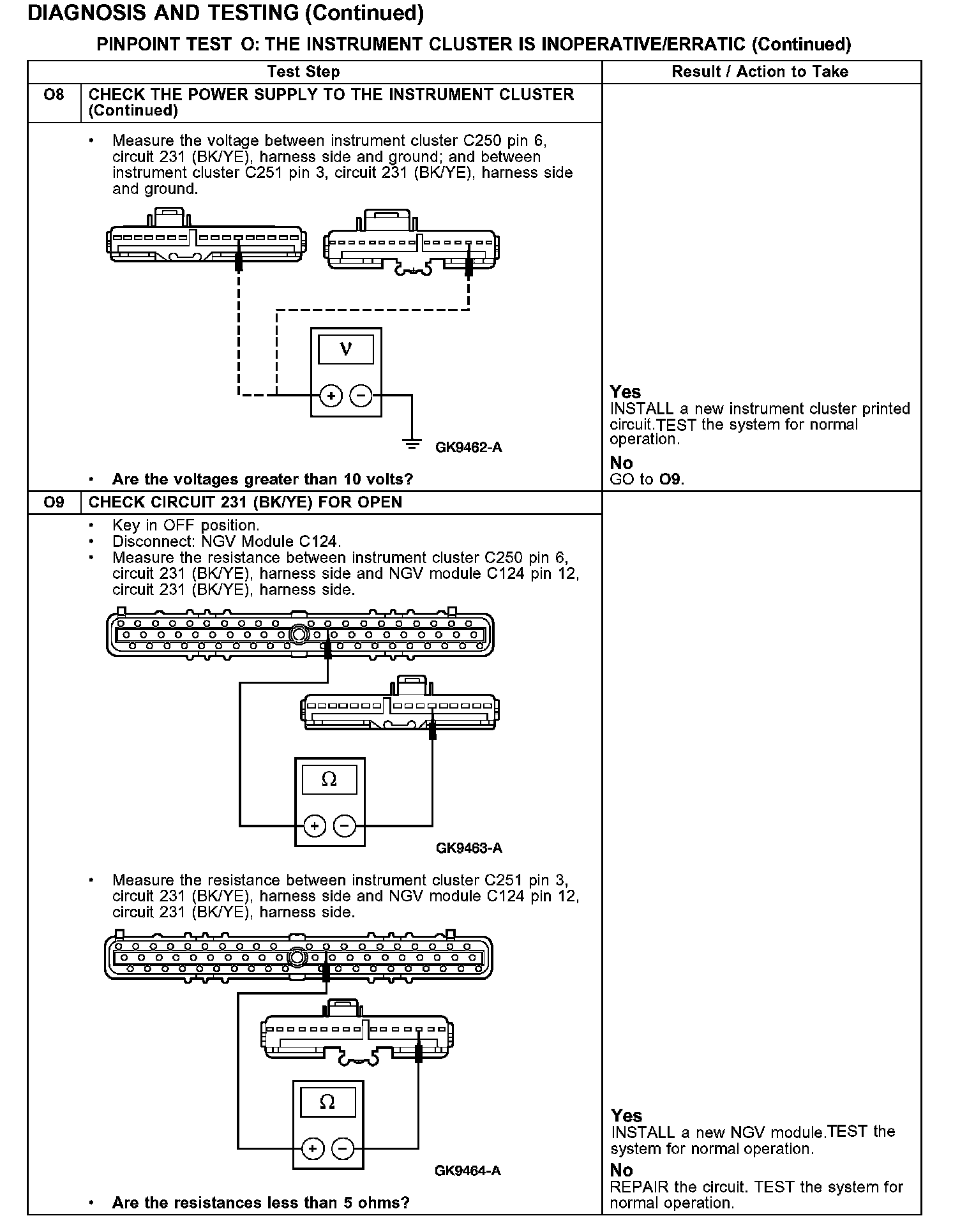

Test O8-O9:
