Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP

REMOVAL

Vehicles Without Fleet Police Option

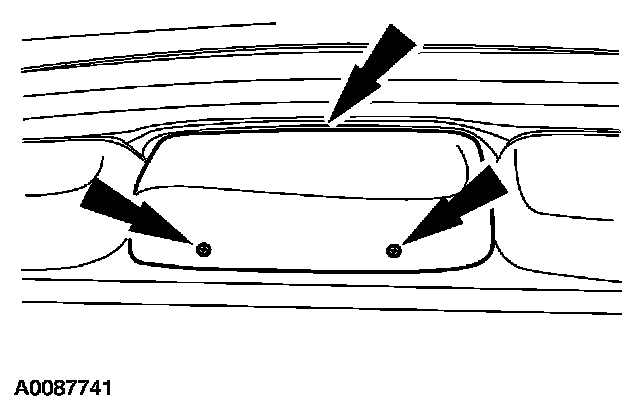

1. Remove the two screws and the high mounted stoplamp assembly.
- Disconnect the electrical connector.

Vehicles With Fleet Police Option

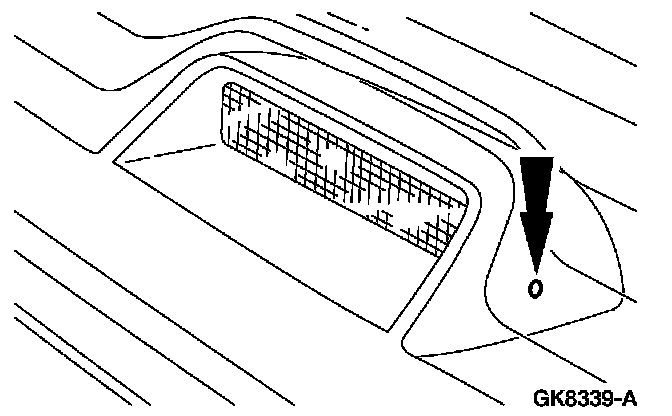

2. Remove the screws and the high mounted stoplamp assembly.
- Disconnect the electrical connector.


All Vehicles







3. Press the clips and remove the high mounted stoplamp bulb holder.

INSTALLATION
1. To install, reverse the removal procedure.
