Home >> Ford >> 2004 >> Crown Victoria V8-4.6L CNG SOHC VIN 9 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test PC (Precheck)

Pinpoint Test PC (Precheck)

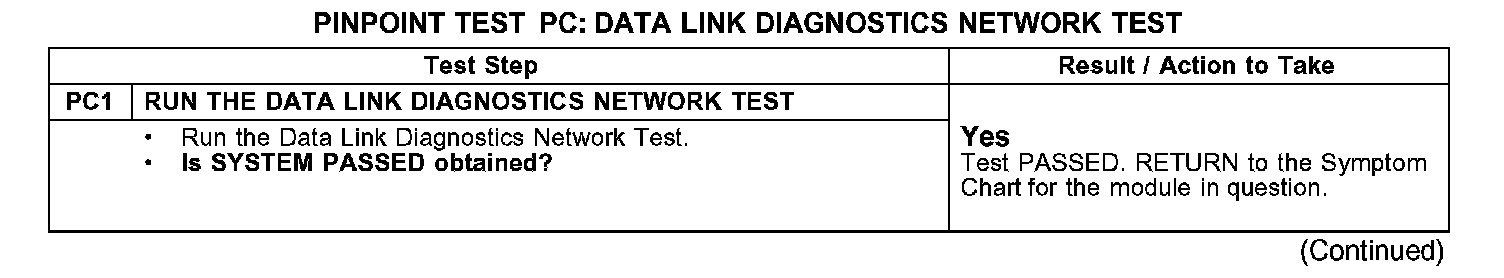

Test PC1:

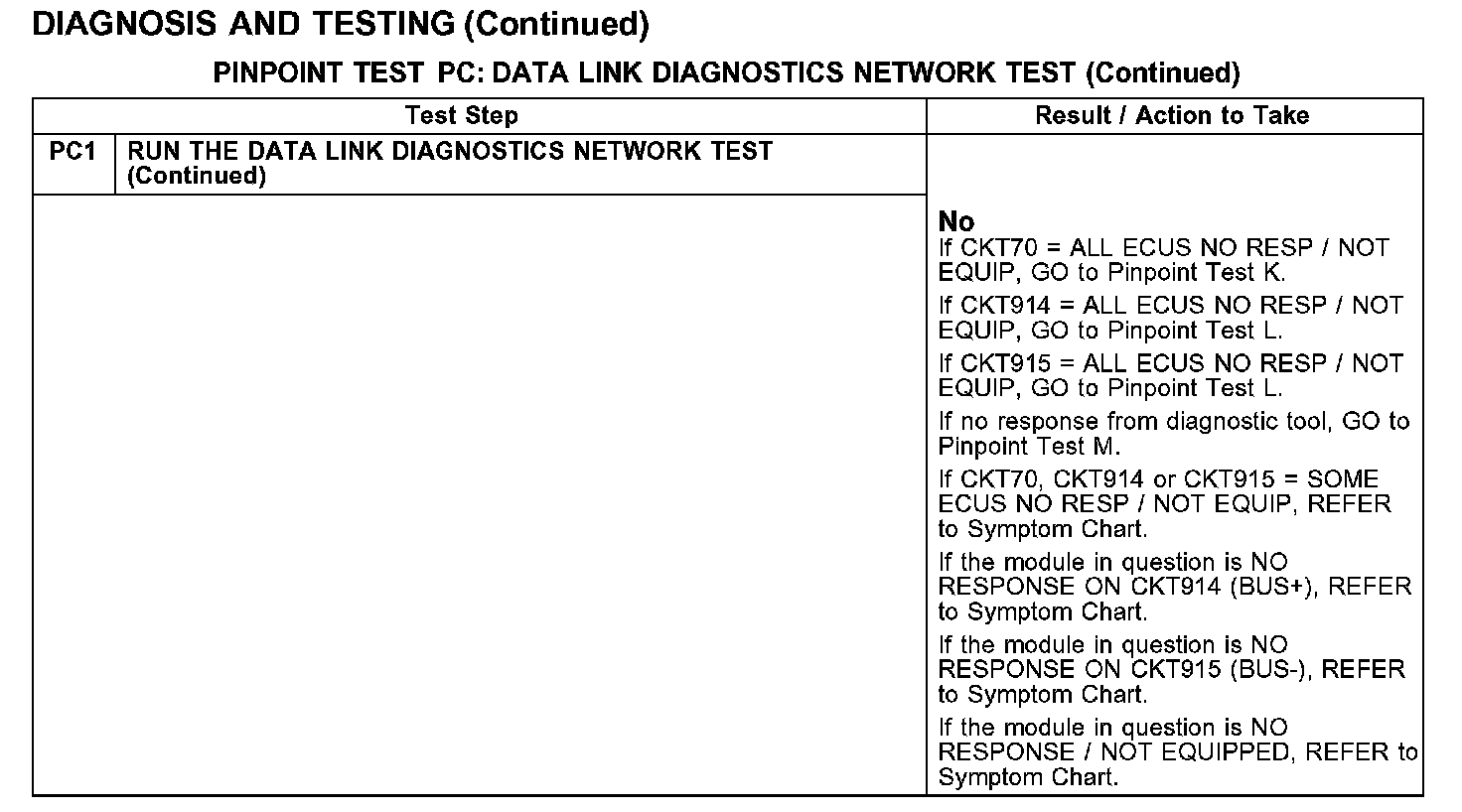

Test PC1 Continued:
