PINPOINT TEST F: THE RESTRAINT CONTROL MODULE (RCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

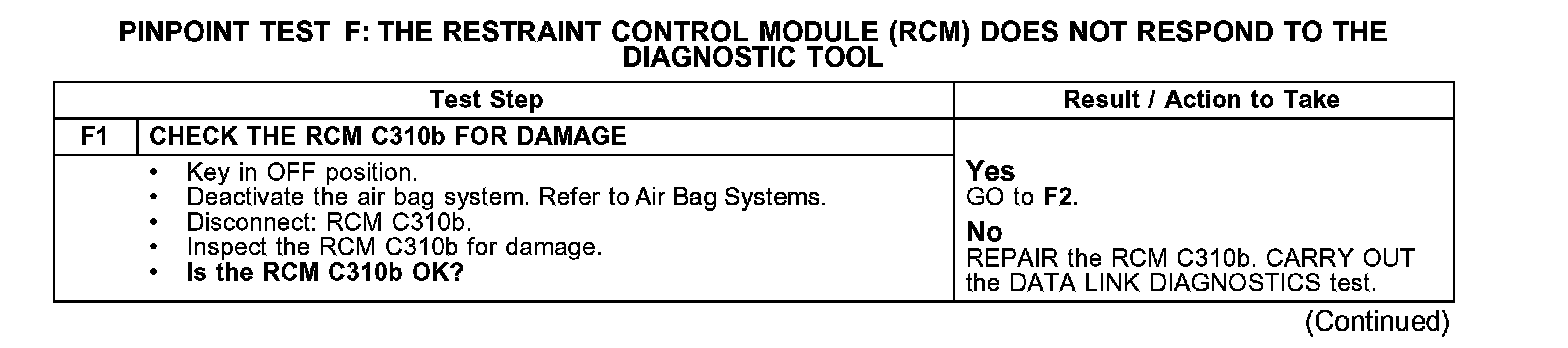

Test F1:

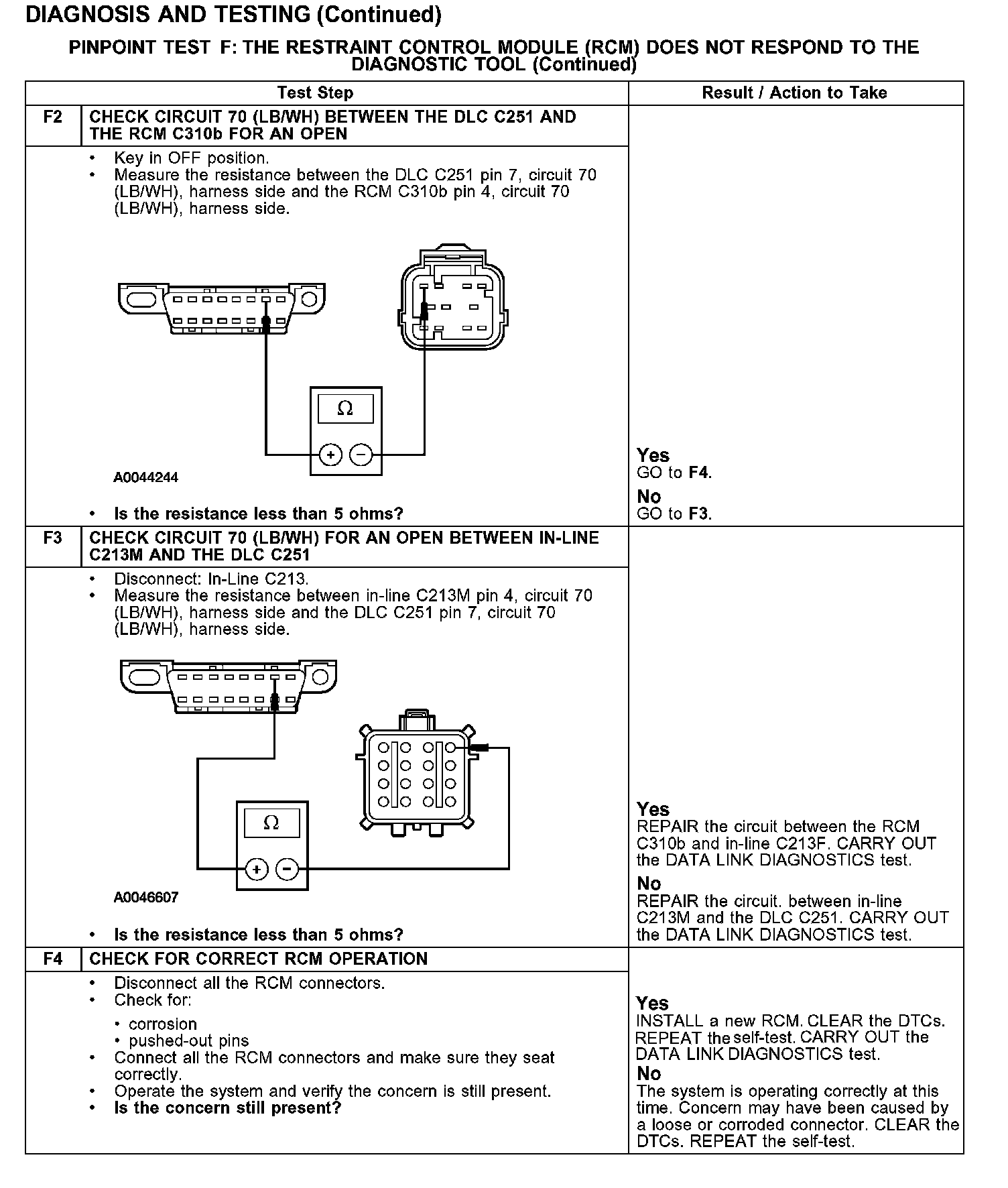

Test F2-F4:
