Exhaust Gas Recirculation (EGR) Valve - EGR Tube

EXHAUST GAS RECIRCULATION (EGR) VALVE - EGR TUBE

REMOVAL

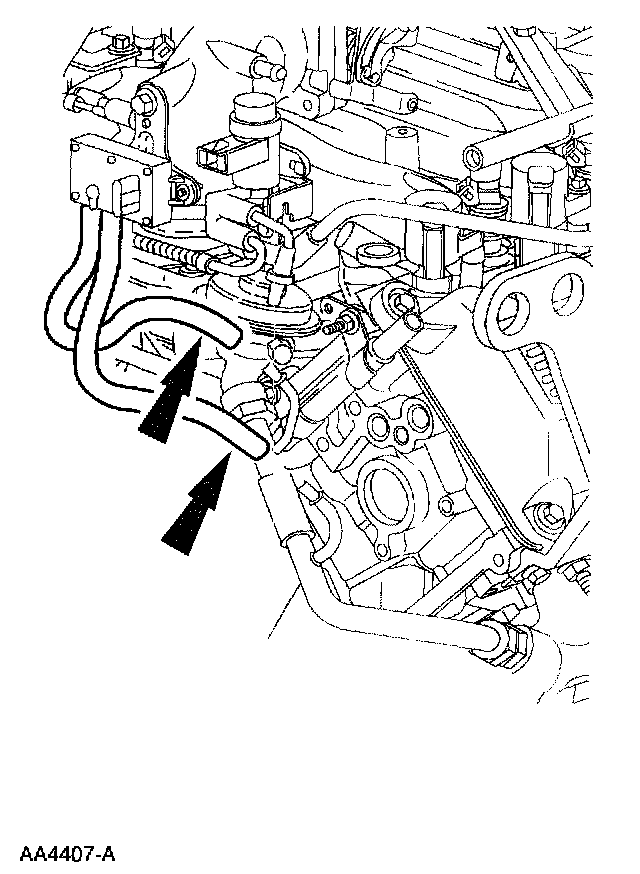

1. Disconnect the differential pressure feedback EGR hoses.

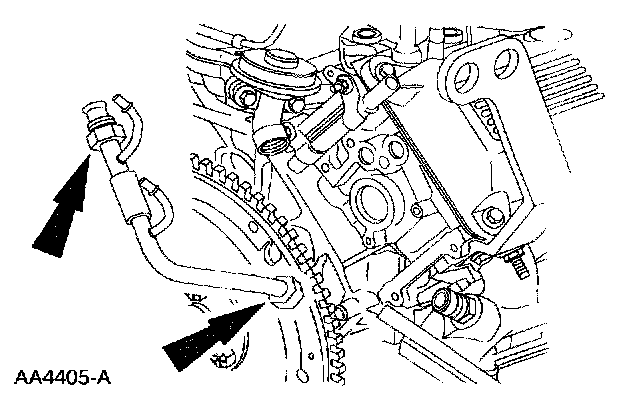

2. Disconnect the EGR tube.

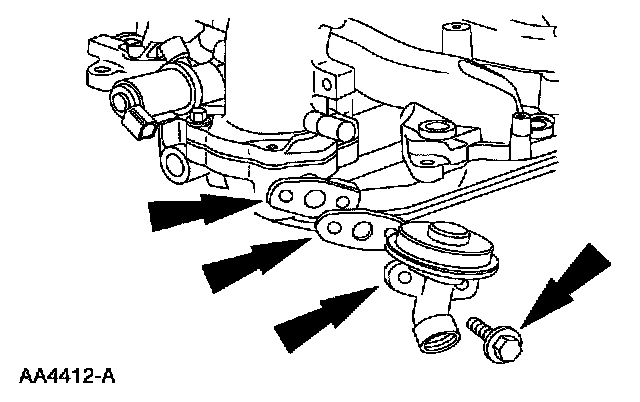

3. Remove the two bolts, the EGR valve and the gasket.

INSTALLATION

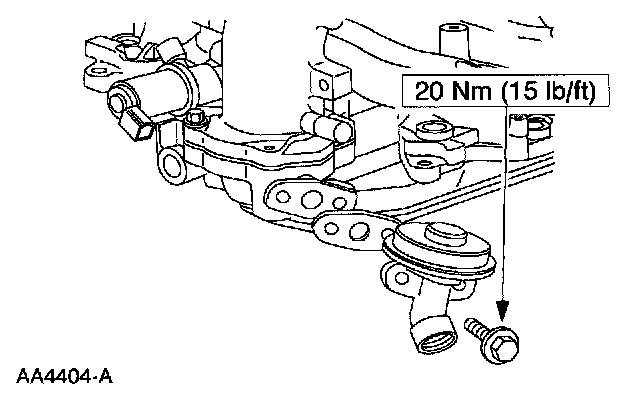

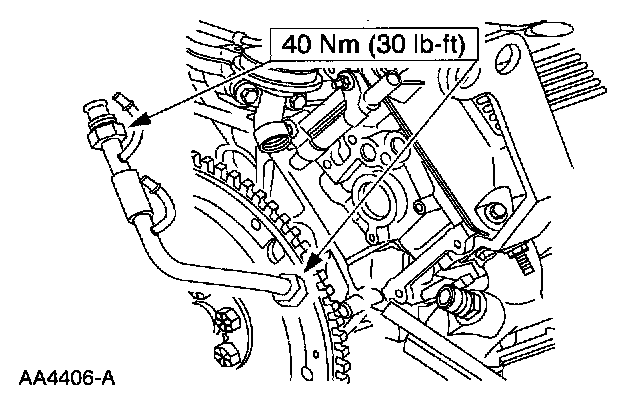

1. To install, reverse the removal procedure.
