Ignition Coil: Service and Repair

IGNITION COIL-ON-PLUG

REMOVAL
1. Remove the air cleaner outlet pipe.

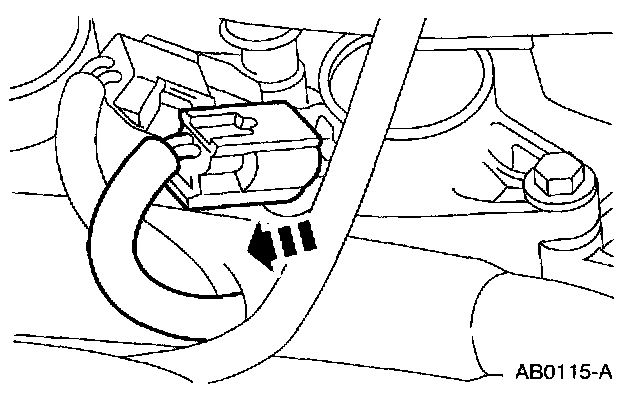

2. Disconnect the connector from the ignition coil.

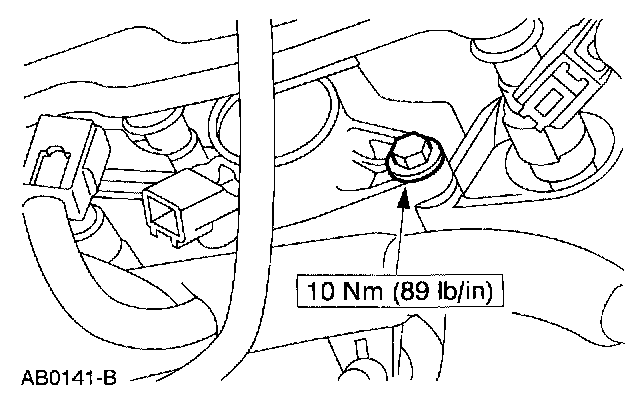

3. Remove the bolt from the ignition coil.

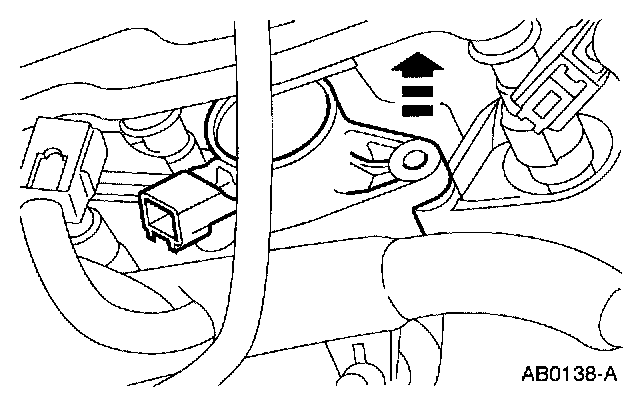

4. Remove the ignition coil on plug.

INSTALLATION







1. To install, reverse the removal procedure.
